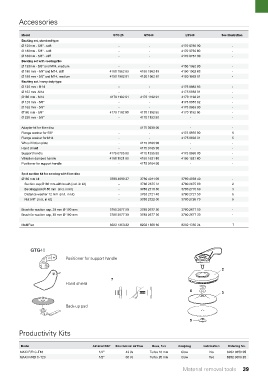

Page 39 - ingenioren
P. 39
Accessories
Model GTG 25 GTG40 LSV48 See illustration
Backing set, standard type
Ø 125mm - 5/8'' - soft - - 4170 0768 80 -
Ø 180mm - 5/8'' - soft - - 4170 0756 80 -
Ø 180mm - 5/8'' - stiff - - 4170 0757 80 -
Backing set with cooling ribs
Ø 125mm - 5/8'' and M14, medium - - 4150 1962 80 -
Ø 180 mm - 5/8'' and M14, stiff 4150 1962 83 4150 1962 83 4150 1962 83 -
Ø 180 mm - 5/8'' and M14, medium 4150 1962 81 4150 1962 81 4150 1962 81 -
Backing set, heavy duty type
Ø 120 mm - M14 - - 4175 0883 93 -
Ø 162 mm -M14 - - 4175 0883 91 -
Ø180 mm - M14 4170 1192 91 4170 1192 91 4170 1192 91 -
Ø 120 mm - 5/8'' - - 4175 0883 92 -
Ø 162 mm - 5/8'' - - 4175 0883 90 -
Ø180 mm - 5/8'' 4170 1192 90 4170 1192 90 4170 1192 90 -
Ø 230 mm - 5/8'' - 4170 1193 90 - -
Adapter kit for fiber disc 4175 0238 90 - -
Flange washer for 5/8" - - 4175 0893 00 5
Flange washer for M14 - - 4175 0893 01 5
Wheel friction plate - 4175 0186 90 - -
Hand shield - 4175 0165 90 - -
Support handle 4175 0705 90 4110 1355 88 4175 0868 80 -
Vibration damped handle 4150 1521 80 4150 1521 80 4150 1521 80 -
Positioner for support handle - 4175 0164 90 - -
Spot suction kit for sanding with fibre disc
Ø180 mm kit 3780 4090 27 3780 4011 00 3780 4093 40 -
Suction cap Ø180 mm with brush (incl. in kit) - 3780 2675 31 3780 2675 00 2
Backing pad Ø180 mm (incl. in kit) - 3780 2710 60 3780 2710 60 3
Distance washer 12 mm (incl. in kit) - 3780 2721 40 3780 2721 50 6
Nut 5/8'' (incl. in kit) - 3780 2722 00 3780 2726 70 5
Brush for suction cap, 20 mm Ø 180 mm 3780 2677 50 3780 2677 50 3780 2677 50 -
Brush for suction cap, 30 mm Ø 180 mm 3780 2677 30 3780 2677 30 3780 2677 30 -
MultiFlex 8202 1350 22 8202 1350 60 8202 1350 24 7
GTG40
Positioner for support handle
2
7
Hand shield
6 3
Back-up pad
5
Productivity Kits
Model Air inlet BSP Economical air flow Hose, 5 m Coupling Lubrication Ordering No.
MAXI F/R C-T16 1/2'' 43 l/s Turbo 16 mm Claw No 8202 0850 05
MAXI F/RD C-T20 1/2'' 65 l/s Turbo 20 mm Claw Yes 8202 0850 20
Material removal tools 39
