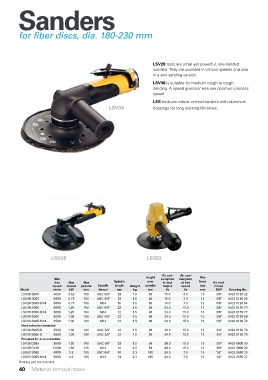

Sanders

for fiber discs, dia. 180-230 mm
for fiber discs, dia. 180–230 mm

LSV28 tools are small yet powerful, one-handed
sanders. They are available in various speeds and also
in a wet sanding version.
LSV38 is suitable for medium rough to rough
sanding. A speed governor ensures optimum process
speed.

LSS tools are robust vertical sanders with aluminum
LSV38 housings for long working life-times.

LSV28 LSS53

Air con- Air con-
Height Rec
Max sumption sumption
free Max Max Spindle over at max at free hose Air inlet
speed output pad dia Spindle length Weight spindle output speed size thread
Model r/min kW mm thread mm kg mm l/s l/s mm BSP Ordering No.
LSV28 S040 4000 0.62 180 UNC 5/8'' 32 1.5 86 15.0 4.0 13 3/8'' 8423 0126 22
LSV28 S060 6000 0.73 180 UNC 5/8'' 32 1.5 86 16.0 7.3 13 3/8'' 8423 0125 30
LSV28 S060-M14 6000 0.73 180 M14 16 1.5 86 16.0 7.3 13 3/8'' 8423 0125 64
LSV38 S066 6600 1.20 180 UNC 5/8'' 22 1.5 96 24.0 13.0 13 3/8'' 8423 0130 73
LSV38 S066-M14 6600 1.20 180 M14 12 1.5 96 24.0 13.0 13 3/8'' 8423 0130 77
LSV38 S085 8500 1.30 180 UNC 5/8'' 22 1.5 96 28.0 15.0 13 3/8'' 8423 0130 69
LSV38 S085-M14 8500 1.30 180 M14 12 1.5 96 28.0 15.0 13 3/8'' 8423 0130 72
Dust extraction included
LSV38 S085 D 8500 1.30 180 UNC 5/8" 22 1.5 96 28.0 15.0 13 3/8" 8423 0130 76
LSV38 S066 D 6600 1.20 180 UNC 5/8" 22 1.5 96 24.0 13.0 13 3/8" 8423 0130 75
Prepared for dust extraction
LSV38 D085 8500 1.30 180 UNC 5/8" 22 1.5 96 28.0 15.0 13 3/8" 8423 0800 03
LSV38 D120 12000 1.30 125 M14 10 2.0 89 28.0 15.0 13 3/8" 8423 0800 02
LSS53 S060 6000 1.2 180 UNC 5/8'' 30 2.3 180 24.0 7.0 13 1/2'' 8423 2530 23
LSS53 S060-M14 6000 1.2 180 M14 31 2.3 180 24.0 7.0 13 1/2'' 8423 2530 27
Backing pad not included
40 Material removal tools
