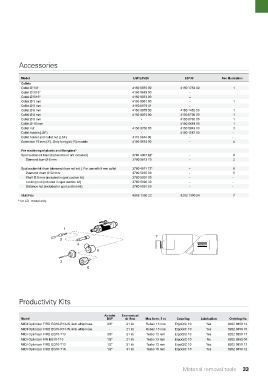

Page 33 - ingenioren

up to 0.66–1.35 kw

Accessories

Model LSF/LSV28 LSF38 See illustration
Collets
Collet Ø 1/4" 4150 0076 00 4150 1754 00 1
Collet Ø 3/16" 4150 0649 00 -
Collet Ø 5/16" 4150 0074 00 -
Collet Ø 3 mm 4150 0081 00 - 1
Collet Ø 5 mm 4150 0075 01 -
Collet Ø 6 mm 4150 0075 00 4150 1453 00 1
Collet Ø 8 mm 4150 0074 00 4150 0706 00 1
Collet Ø 9 mm - 4150 0765 00 1
Collet Ø 10 mm - 4150 0681 00 1
Collet nut 4150 0760 00 4150 0849 00 3
Collet holder (LSF) - 4150 1587 00 -
Collet holder and collet nut (LSF) 4110 0844 90 - -
Extension 75 mm (3"). Only for rigid (-R) models 4150 0674 00 - 4
For machining of plastic and fiberglass*
Spot suction kit burr (diamond burr not included) 3780 4007 42* - 6
Diamond burr Ø 6 mm 3780 5013 70 - 2
Spot suction kit drum (diamond drum not incl.). For use with 8 mm collet 3780 4011 73* - 6
Diamond drum Ø 52 mm 3780 5035 00 - 5
Shaft Ø 8 mm (included in spot suction kit) 3780 5091 00 - -
Locking nut (included in spot suction kit) 3780 5092 00 - -
Distance nut (included in spot suction kit) 3780 5091 50 - -

MultiFlex 8202 1350 22 8202 1350 24 7
*For LSF model only.

1
7
3
4
6

2
5

Productivity Kits

Air inlet Economical
Model BSP air flow Max hose, 5 m Coupling Lubrication Ordering No.
MIDI Optimizer F/RD EQ10-R13-W, incl. whip hose 3/8'' 21 l/s Rubair 13 mm ErgoQIC 10 Yes 8202 0850 14
MIDI Optimizer F/RD EQ10-R13-W, incl. whip hose - 21 l/s Rubair 13 mm ErgoQIC 10 Yes 8202 0850 15
MIDI Optimizer F/RD EQ10-T13 3/8'' 21 l/s Turbo 13 mm ErgoQIC 10 Yes 8202 0850 17
MIDI Optimizer F/R EQ10-T13 1/2'' 21 l/s Turbo 13 mm ErgoQIC 10 No 8202 0850 04
MIDI Optimizer F/RD EQ10-T13 1/2'' 21 l/s Turbo 13 mm ErgoQIC 10 Yes 8202 0850 13
MIDI Optimizer F/RD EQ10-T16 1/2'' 31 l/s Turbo 16 mm ErgoQIC 10 Yes 8202 0850 12

Material removal tools 33
