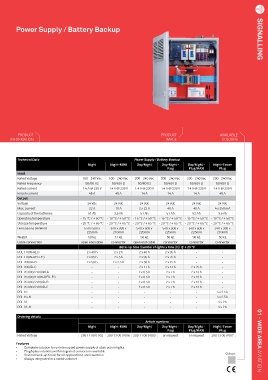

Power Supply / Battery Backup SIGNALLING SIGNALLING

PRODUCT PRODUCT AVAILABLE
INFORMATION IMAGE COLOURS

Technical Data Power Supply / Battery Backup
Night Night-MINI Day/Night Day/Night - Day/Night - Night-Tower
Plug Plug/MAXI Plug
Input
Rated Voltage 100 - 240 Vac 100 - 240 Vac 200 - 240 Vac 200 - 240 Vac 200 - 240 Vac 200 - 240 Vac
Rated Frequency 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
Rated current 1.4 A @ 230 V 1.4 A @ 230 V 1.4 A @ 230 V 1.4 A @ 230 V 1.4 A @ 230 V 1.4 A @ 230 V
Inrush current 45 A 45 A 14 A 14 A 14 A 45 A
Output
Voltage 24 Vdc 24 Vdc 24 Vdc 24 Vdc 24 Vdc 24 Vdc
Max. current 22 A 10 A 2 x 22 A 40 A 40 A 4 x 350 mA
Capacity of the batteries 51 Ah 3.5 Ah 51 Ah 51 Ah 92 Ah 3.5 Ah
Operating temperature - 15 °C / + 50 °C - 10 °C / + 50 °C - 15 °C / + 50 °C - 15 °C / + 50 °C - 15 °C / + 50 °C - 10 °C / + 50 °C
Storage temperature - 20 °C / + 65 °C - 20 °C / + 65 °C - 20 °C / + 65 °C - 20 °C / + 65 °C - 20 °C / + 65 °C - 20 °C / + 65 °C
Dimensions (HxWxD) 540 x 500 x 340 x 380 x 540 x 500 x 540 x 500 x 540 x 500 x 340 x 380 x
225mm 210mm 225mm 225mm 225mm 210mm
Weight 50 kg 17 kg 50 kg 50 kg 90 kg 50 kg
Cable connection open end cable connector open end cable connector connector connector
Back-up time (number of lights x time [h]) @ + 25 °C
POL 170W-RED 2 x 40 h 2 x 2 h 2 x 40 h 2 x 35 h - -
POL 170W-RED-ES 2 x 95 h 2 x 5 h 2 x 95 h 2 x 75 h - -
POL 2000R-B 2 x 50 h 2 x 2.5 h 2 x 50 h 2 x 45 h - -
POL 2000R-C - - 2 x 17 h 2 x 14 h 2 x 25 h -
POL 20.000/2.000W-A - - 2 x 8.5 h 2 x 7 h 2 x 13 h -
POL 20.000/170W-RED-ES - - 2 x 8.5 h 2 x 7 h 2 x 13 h -
POL 20.000/2.000R-B - - 2 x 8.5 h 2 x 7 h 2 x 13 h -
POL 20.000/2.000R-C - - 2 x 8.5 h 2 x 7 h 2 x 13 h -
POL 10 - - - - - 4 x 2.5 h
POL 10-H - - - - - 4 x 2.5 h
POL 32 - - - - - 4 x 2 h
POL 32-H - - - - - 4 x 2 h

Ordering details
Article numbers
Night Night-MINI Day/Night Day/Night - Day/Night - Night-Tower
Plug Plug/MAXI Plug
Rated Voltage 280 11 00 0 002 280 13 00 0 006 280 11 00 0 003 on request on request 280 13 00 0 007

Features 01 - WIDE AREA AVIATION
• Complete solution for uninterrupted power supply of obstruction lights
• Plug&play solutions with integrated connectors available
• Several back-up times for all applications and countries Colour:
• Always integrated in a switch cabinet
