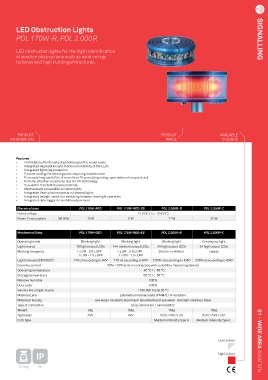

Page 133 - ingenioren

LED Obstruction Lights SIGNALLING
POL 170W-R, POL 2.000R SIGNALLING

LED obstruction lights for the night identification
of aviation obstructions such as wind energy
turbines and high buildings/structures.

PRODUCT PRODUCT AVAILABLE
INFORMATION IMAGE COLOURS

Features
• Dimmable light intensity depending upon the visual range
• Integrated degradation and function monitoring of the LEDs
• Integrated lightning protection
• Passive cooling; No wearing parts requiring maintenance
• Extremely long useful life of more than 20 years (depending upon ambient temperature)
• Extreme vibration resistance due to LED technology
• Sea-water resistant housing material
• Mechanically compatible to combi lights
• Integrated flash synchronisation of several lights
• Integrated twilight switch for switching between day/night operation
• Integrated data logger for visibility adjustment
Electrical data POL 170W-RED POL 170W-RED-ES POL 2.000R-B POL 2.000R-C
Rated voltage 24 V DC (15 – 30 V DC)
Power Consumption @100% 15 W 6 W 11 W 35 W

Mechanical Data POL 170W-RED POL 170W-RED-ES POL 2.000R-B POL 2.000R-C
Operating mode Blinking light Blinking light Blinking light Continuous light
Light source 18 high output LEDs 144 medium output LEDs 24 high output LEDs 24 high output LEDs
Blinking frequency 1 s ON - 0.5 s OFF - 1 s ON - 0.5 s OFF - 20/min. or 40/min. steady
1 s ON - 1.5 s OFF 1 s ON - 1.5 s OFF
Light intensity (DIN 5037) 170 cd according to AVV 170 cd according to AVV 2 000 cd according to ICAO 2 000 cd according to ICAO
Intensity control 30% / 10% (only in connection with a visibility measuring device)
Operating temperature - 40 °C / + 50 °C
Storage temperature - 55 °C / + 55 °C
Relative humidity 100%
Duty cycle 100%
Service life of light source > 100 000 hrs @ 25 °C
Material Lens polymethyl methacrylate (PMMA), UV resistant
Material Housing sea water-resistant aluminium (anodised) and sea water-resistant stainless steel
Type of connection plug connection, Hummel M23
Weight 8kg 15kg 15kg 15kg
Approvals AVV AVV ICAO / AVV / FAA ICAO / AVV / FAA
ICAO type - - Medium Intensity, type B Medium Intensity, type C

Lens colour: 01 - WIDE AREA AVIATION

IP Light colour:

8/15kg 68
