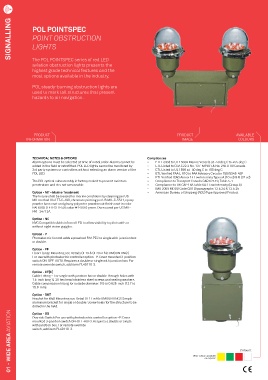

SIGNALLING

SIGNALLING POL POINTSPEC

POINT OBSTRUCTION

LIGHTS

The POL POINTSPEC series of red LED
aviation obstruction lights presents the
highest grade technical features and the
most options available in the industry.

POL steady-burning obstruction lights are
used to mark tall structures that present
hazards to air navigation..

PRODUCT PRODUCT AVAILABLE
INFORMATION IMAGE COLOURS

TECHNICAL NOTES & OPTIONS Compliances
Alarm options must be selected at time of initial order. Alarms cannot be • ETL Listed to UL 1598A Marine Vessels at -40 deg C to +55 deg C
added in the field or retrofitted. POL LED lights cannot be monitored by • ETL Listed to CSA C22.2 No. 137-M1981 & No. 250.0-08 Canada
3rd party systems or controllers without selecting an alarm version of the • ETL Listed to UL 1598 at -40 deg C to +55 deg C
POL LED. • ETL Verified FAA L-810 to FAA Advisory Circular 150/5345-43F
• ETL Verified ICAO Annex 14 Low Intensity Types A (10 cd) & B (32 cd)
The POL optical subassembly is factory sealed to prevent moisture • Compliance to Transport Canada CAR 621.19, Table 5-1
penetration and it is not serviceable. • Compliance to UK CAP 168 Table 6A.1 Low Intensity (Group A)
• IMO 2009 MODU Code (2010) paragraphs 13.5.24 & 13.5.25
Option - MT - Marine Treatment • American Bureau of Shipping (ABS) Type Approved Product
The fixture shall be treated for marine conditions by cleaning per US
MIL method III of TT-C-490, chromate priming per US MIL-C-5541, epoxy
powder base coat and glossy polyester powdercoat finish coat in color
RAL6003 (FED-STD-595 color #14097) green. Oven cured per US MIL-
PRF-24712A.
Option - NC
NVG Compatible Adds infrared LED to allow visibility to pilots with or
without night vision goggles.
Option - P
Photoelectric Control adds a prewired FAA PEC to single with junction box
or double.
Option - FF
Floor Flange Mounting see Details OL19 & OL20 in file 0MOUNTINGS
For use with photoelectric controller option –P. Cover mounted 3-position
switch ON-OFF-AUTO. Requires a double or single with junction box. For
remote override switch, add item PL40110-3.
Option - CF[C]
Cable Fitting – For single with junction box or double Through holes with
1.5-inch long ¼-20 hex head stainless steel screws and sealing washers.
Cable compression fitting for outside diameter: 0.5 to 0.625-inch (12.7 to
15.9-mm).
Option - BKT
Bracket for Wall Mounting see Detail OL17 in file 0MOUNTINGS Simple
aluminum bracket for single or double. Screw holes for the structure to be
drilled in the field.
01 - WIDE AREA AVIATION with junction box. For remote override Other colours available Colours:
Option - OS
Override Switch For use with photoelectric controller option –P. Cover
mounted 3-position switch ON-OFF-AUTO. Requires a double or single
switch, add item PL40110-3.

on request.
