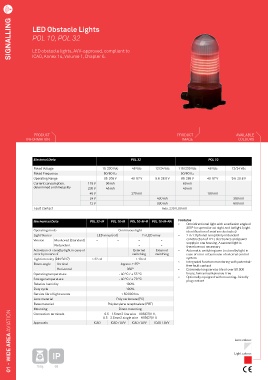

SIGNALLING

SIGNALLING LED Obstacle Lights

POL 10, POL 32

LED obstacle lights, AVV-approved, compliant to
ICAO, Annex 14, Volume 1, Chapter 6.

PRODUCT PRODUCT AVAILABLE
INFORMATION IMAGE COLOURS

Electrical Data POL 32 POL 10
Rated Voltage 15-230 Vdc 48 Vdc 12/24 Vdc 115/230 Vdc 48 Vdc 12/24 Vdc
Rated Frequency 50/60 Hz 50/60 Hz
Operating Range 85-265 V 40-57 V 9.6-28.8 V 85-265 V 40-57 V 9.6-28.8 V
Current consumption, 115 V 96 mA 60 mA
determined arithmetacilly 230 V 45 mA 40 mA
48 V 270 mA 180 mA
24 V 430 mA 350 mA
12 V 800 mA 600 mA
Fault Contact max. 230 V, 80 mA

Mechanical Data POL 32-M POL 10-M POL 10-M-R POL 10-M-RA Features
• Omnidirectional light with a radiation angle of
360º for operation at night and twilight (night
Operating mode Continuous light identification of aviation obstacles)
Light Source LED array (red) 2 x LED array • 2 in 1: Optional completely redundant
Version Monitored (Standard) • • • • construction of LED, electronics and power
supply in one housing. A second light is
Redundant • • therefore not necessary
Activation of standby light in case of External External • Automatic switching over to standby light in
error by means of switching switching case of error or by means of external control
Light intensity (DIN 5037) > 32 cd > 10 cd system
• Integrated function monitoring with potential-
Beam angle Vertical Approx. ± 35º
free fault contact
Horizontal 360º • Extremely long service life of over 50.000
Operating temperature - 40 °C / + 55 °C hours, hence maintenance-free
• Optionally equipped with mounting-friendly
Storage temperature - 40 °C / + 70 °C
plug contact
Relative humidity 100%
Duty cycle 100%
Service life of light source > 50 000 hrs
Lens material Poly carbonate (PC)
Base material Polybutylene terephtalate (PBT)
Mounting ICAO 0.5 - 2.5mm2 single wire - H05(07)V-U
Direct mounting
01 - WIDE AREA AVIATION 750g IP Light colour:
Connection terminals
0.5 - 1.5mm2 fine wire - H05(07)V-K,
ICAO / AVV
Approvals
ICAO / AVV
ICAO / AVV
Lens colour:
