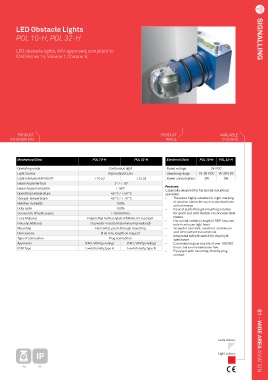

LED Obstacle Lights SIGNALLING
POL 10-H, POL 32-H SIGNALLING

LED obstacle lights, AVV-approved, compliant to
ICAO Annex 14, Volume 1, Chapter 6.

PRODUCT PRODUCT AVAILABLE
INFORMATION IMAGE COLOURS

Mechanical Data POL 10-H POL 32-H Electrical Data POL 10-H POL 32-H
Operating mode Continuous light Rated voltage 24 V DC
Light Source High output LEDs Operating range 15-30 V DC 15-30 V DC
Light Intensity (DIN 5037) > 10 cd > 32 cd Power consumption 2W 3W
Beam Angle Vertical - 2° / + 10°
Beam Angle Horizontal > 180° Features
Especially designed for horizontal mounting/
Operating Temperature - 40 °C / + 50 °C operation.
Storage Temperature - 40 °C / + 70 °C • Therefore highly suitable for night marking
Relative Humidity 100% of aviation obstacles such as windturbines
and chimneys
Duty cycle 100% • Easiest push-through mounting solution
Service life of light source > 100 000 hrs for quick and safe fixation on concrete steel
Lens Material Polymethyl methacrylate (PMMA), UV resistant • towers
Horizontal radiation angle of 180º requires
Housing Material Sea water-resistant aluminium (anodised) only 4 units per light level
Mounting Horizontal, push-through mounting • Seawater resistant, anodized aluminium
Dimensions Ø 50 mm, length on request and UV resistant lens material
• Integrated twilight switch for day/night
Type of connection Plug connection switchover
Approvals ICAO / AVV (pending) ICAO / AVV (pending) • Extremely long service life of over 100.000
ICAO Type Low Intensity, type A Low Intensity, type B hours, hence maintenance-free
• Equipped with mounting-friendly plug
contact

Lens colour: 01 - WIDE AREA AVIATION

IP Light colour:

1kg 68
