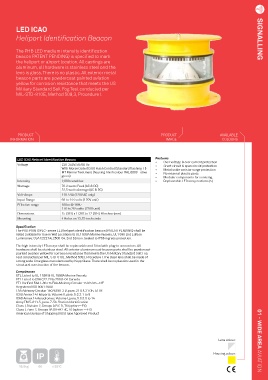

LED ICAO SIGNALLING
Heliport Identification Beacon SIGNALLING

The PHB LED medium intensity identification
beacon PATENT PENDING) is specified to mark
the heliport or airport location. All castings are
aluminum, all hardware is stainless steel and the
lens is glass. There is no plastic. All exterior metal
beacon parts are powdercoat painted aviation
yellow for corrosion resistance that meets the US
Military Standard Salt Fog Test conducted per
MIL-STD-810E, Method 509,3, Procedure I.

PRODUCT PRODUCT AVAILABLE
INFORMATION IMAGE COLOURS

LED ICAO Heliport Identification Beacon Features
•
Over voltage & over current protection
Voltage 220-240V, 50/60 Hz • Short circuit & open circuit protection
With Morse Code (ICAO) Flash Control (Standard flashing H) • Metal oxide varistor surge protection
MT Marine Treatment (housing finish colour RAL 6003 - olive • No external plastic parts
green) • Modular components for servicing
Intensity 2,000 candelas • Replaceable LED array sections (5)
Wattage 70.2 watts Peak (AC & DC)
52,5 watts Average (AC & DC)
Volt-Amps 110.4 VA (120V AC only)
Input Range 93 to 144 volts (120V unit)
Effective range 100m @ 1KHz
176 to 264 volts (220V unit)
Dimensions 15 (381) x 1 (381) x 12 (304) H Inches (mm)
Mounting 4 Holes on 13,25-inch circle
Specification
The PHB POINTSPEC- series LED heliport identification beacon (PATENT PENDING) shall be
listed Suitable for Use in Wet Locations to UL1 598A Marine Vessels, UL1 598 2nd Edition
Luminaries; CSA C222 No.2500-04, 2nd Edition. Sealed to IP66 ingress protection.

The high intensity LED arrays shall be replaceable and fitted with plug-in connectors. All
hardware shall be stainless steel. All exterior aluminum cast beacon parts shall be powdercoat
painted aviation yellow for corrosion resistance that meets the US Military Standard Salt Fog
Test conducted per MIL-STD-810E, Method 5093, Procedure I. The clear lens shall be made of
strong soda-lime glass manufactured by Kopp Glass. There shall be no plastics used in the
structural construction of the beacon.
Compliances
ETL Listed to UL 1 598 & UL 1598A Marine Vessels
ETL Listed to CSA C22.2 No.250.0-04 Canada
ETL Verified FAA L-864 to FAA Advisory Circular 150/5345-43F
Registered ISO 9001:2008
FAA Advisory Circular 150/5390-2 B, para. 21 0.f, 31 Oh, 41 Of.
ICAO Annex 14 Heliports, Volume II, para. 5.3.2. 1 to 5
ICAO Annex 14 Aerodromes, Volume I, para. 5.3.3.3 to 14
Army TM 5-811-5, para. 7-5b. Station Identification
Class I, Division 2, Groups A B C D, T6 (option—EX)
Class I, Zone 2, Groups IIA llB+H2 ilC, T6 (option —EX)
American Bureau of Shipping (ABS) Type Approved Product

Lens colour: 01 - WIDE AREA AVIATION

IP Housing colour:

18.6kg 66 ± 55°C
