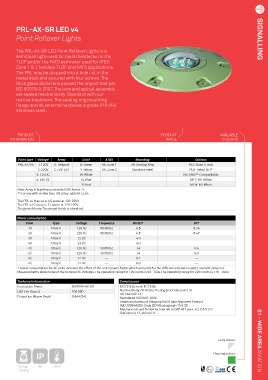

PRL-AX-SR LED v4 SIGNALLING
Point Rollover Lights SIGNALLING

The PRL-AX-SR LED Point Rollover Lights is a
semiflush light used for metal helidecks on the
TLOF and/or the FATO perimeter used for ATEX
Zone 1 & 2 helideck TLOF and FATO applications.
The PRL may be dropped into a hole cut in the
metal deck and secured with four screws. The
thick glass dome lens passed the impact test per
IEC 60079-0:2007. The lens and optical assembly
are sealed mechanically. Standard with our
marine treatment. The seating ring mounting
flange and all external hardware is grade 316 (A4)
stainless steel.

PRODUCT PRODUCT AVAILABLE
INFORMATION IMAGE COLOURS

Point type Voltage Array Color ATEX Mounting Options
PRL-97704 1: 120V H: Heliport G: Green AX: Zone 1 SR: Seating Ring PLS: Base 4-inch
2: 220V C: CAP 437 Y: Yellow AX: Zone 2 Stainless steel PLB: Detail h51*
3: 12v DC W: White NC: NVG** Compatibility
4: 24V DC B: Blue MTY: MT Yellow
R: Red MTW: MT White
Note: Array H brightness exceeds ICAO Annex 14
**For use with visible (non-IR) array; adds IR LEDs.
The PRL v4 H array is 4.5 watts at 120-220V
The PRL v4 C array is 7.4 watts at 120-220V
The green Marine Treatment finish is standard

Power consumption
Code Type Voltage Frequency Watts* VA*
-1H Array H 120 AC 50/60Hz 4.5 5.24
-2H Array H 220 AC 50/60Hz 4.5 5.47
-3H Array H 12 DC --- 4.0 ---
-4H Array H 24 DC --- 4.0 ---
-1C Array C 120 AC 50/60HZ 7.4 8.4
-2C Array C 220 AC 50/60Hz 7.4 8.0
-3C Array C 12 DC --- 6.2 ---
-4C Array C 24 DC --- 6.0 ---
* Power consumption for AC units includes the effect of the unit’s power factor which accounts for the difference between watts and volt-amperes.
Measurements were made at the nominal AC voltages. The operating range for 120v units is 93 -144v. The operating range for 220v units is 176 - 250v.
Technical information Compliances
Instruction Sheet IS97004-AX-SR EX II 2 G Ex e mb IIC T5 Gb
LED Life (hours) 100.000 Notified Body: 0518 Sira Testing & Certification Ltd.
Projection (Above Deck) 0.944 (24) UK CAA CAP 437
Registered ISO 9001:2008
American Bureau of Shipping (ABS) Type Approved Product
IMO 2009 MODU Code (2010) paragraph 13.5.20
Mechanical Load Tested by Intertek to CAP 437 para. 4.2.3 & 5.2.3
ICAO Annex 14, Volume II

Lens colour: 01 - WIDE AREA AVIATION

IP Housing colour:

9.1kg / 66 ± 55°C
10.4kg CAP437
