PRODUCT PRODUCT AVAILABLE SIGNALLING SIGNALLING
INFORMATION IMAGE COLOURS

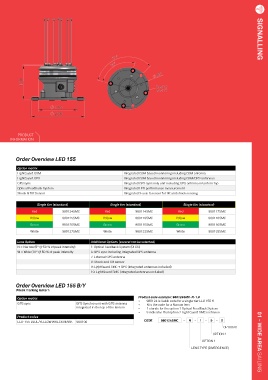

Order Overview LED 155

Option matrix
LightGuard GSM Integrated GSM based monitoring including GSM antenna
LightGuard GPS Integrated GSM based monitoring including GSM/GPS antennas
GPS sync Integrated GPS sync only unit including GPS antenna in lantern top
Optical Feedback System Integrated LED performance measurement
Shock & Tilt Sensor Integrated 3-axis G sensor for tilt and shock sensing

Single tier (standard) Single tier (standard) Single tier (standard)
Red 980124SMC Red 980114SMC Red 980117SMC
Yellow 980125SMC Yellow 980119SMC Yellow 980118SMC
Green 980126SMC Green 980115SMC Green 980116SMC
White 980127SMC White 980132SMC White 980133SMC
Lens Option Additional Options (several can be selected)
N = Narrow (6° @ 50 % of peak intensity) 1: Optical Feedback System (OFBS)
W = Wide (10° @ 50 % of peak intensity 4: GPS sync including integrated GPS antenna
7: External GPS antenna
8: Shock and Tilt sensor
9: LightGuard SMC + GPS (Integrated antennas included)
10: LightGuard SMC (integrated antennas included)

Order Overview LED 155 B/Y
Wreck marking lantern
Option matrix Product code example: 980124SMC-N-1.9
•
980124 is Sabik code for a single tier LED 155 R
GPS sync GPS Synchro unit with GPS antenna • N is the code for a Narrow lens
integrated in the top of the lantern • 1 stands for the option 1 Optical FeedBack System
• 9 indicates that option 2 Light Guard SMC is chosen
Product codes
LED-155 BLUE/YELLOW WRECK MARK 980106 CODE 980124SMC - N - 1 - 9 - X
OPTION X
OPTION 2
OPTION 1 01 - WIDE AREA SAILING
LENS TYPE (DIVERGENCE)
