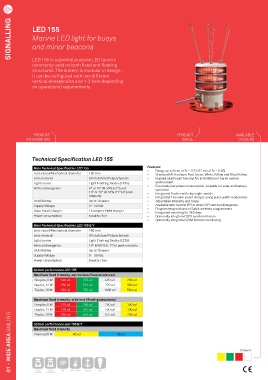

SIGNALLING LED 155

Marine LED light for buoys

and minor beacons

LED 155 is a general purpose LED lantern
commonly used on both fixed and floating
structures. The lantern is modular in design.
It can be configured with two different
vertical divergencies and 1-3 tiers depending
on operational requirements.

PRODUCT PRODUCT AVAILABLE
INFORMATION IMAGE COLOURS

Technical Specification LED 155

Main Technical Specification LED 155 Features
• Range up to 8 nm at Tc = 0.74 (12 nm at Tc = 0.85)
Lens visual/Mechanical diameter 160 mm • Standard IALA colours Red, Green, White, Yellow and Blue/Yellow
Lens material UV stabilized Polycarbonate • Rugged aluminium housing for installation in harsh marine
Light source Light Emitting Diodes (LEDs) environment
• Extremely low power consumption, suitable for solar and battery
Vertical divergence 6° or 10° @ 50% (±1°) and operation
10° or 20° @ 10% (±2°) of peak • Integrated flasher with day-night switch
intensity • Integrated 16a solar panel charger using pulse width modulation
Unit lifetime Up to 10 years • Adjustable intensity and range
Supply Voltage 8 – 30 Vdc • Available with narrow (6°) or wide (10°) vertical divergence
• Programming with any of Sabik wireless programmers
Solar Panel Charger 16 ampere PWM charger
• Integrated event log for 365 days
Power consumption 6 watts / tier • Optionally integrated GPS synchronization
• Optionally integrated GSM Remote monitoring
Main Technical Specification LED 155 B/Y
Lens visual/Mechanical diameter 160 mm
Lens material UV stabilized Polycarbonate
Light source Light Emitting Diodes (LEDs)
Vertical divergence 10° @ 50 % (± 1°) of peak intensity
Unit lifetime Up to 10 years
Supply Voltage 9 – 30 Vdc
Power consumption 6 watts / tier
Optical performance LED 155
Maximum fixed intensity, narrow lens (fixed structures)
Simplex, 6 W 140 cd 270 cd 420 cd 200 cd
Duplex, 12 W 266 cd 513 cd 720 cd 380 cd
Triplex, 18 W 392 cd 756 cd 1080 cd 560 cd
Maximum fixed intensity, wide lens (floating structures)
Simplex, 6 W 120 cd 180 cd 250 cd 100 cd
Duplex, 12 W 228 cd 342 cd 450 cd 190 cd
01 - WIDE AREA SAILING Maximum fixed intensity -40ºC / +60ºC Marine LED 45 cd Colours:
504 cd
280 cd
675 cd
336 cd
Triplex, 18 W
Optical performance LED 155 B/Y
Nominal 5 W
45 cd

IP

3,9kg
4,2kg
68
(LED 155 B/Y)
(LED 155)
