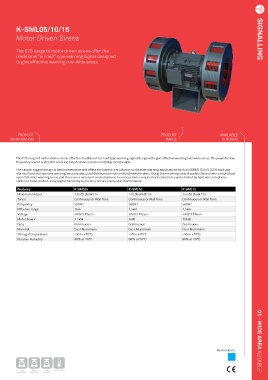

K-SML05/10/15 SIGNALLING
Motor Driven Sirens SIGNALLING

The E2S range of motor driven sirens offer the
traditional “air raid” type warning signal designed
to give effective warning over wide areas.

PRODUCT PRODUCT AVAILABLE
INFORMATION IMAGE COLOURS

The E2S range of motor driven sirens offer the traditional “air raid” type warning signal designed to give effective warning over wide areas. The powerful low
frequency sound is ideal for covering long distances and is instantly recognisable.
The simple, rugged design is low maintenance and offers the lowest cost solution to disaster warning applications such as COMAH (SEVESO II) toxic gas
alarms, flood and tsunami warning, security alert, civil defence, tornado and bad weather alert. Using the matching control panel, these sirens can produce
up to 3 distinct warning tones and there are a variety of control options to suit customer requirements. Controls can be linked by hard wire, telephone
cables or radio control using digital telemetry to create a secure communication network.
Features K-SML05 K-SML10 K-SML15
Maximum Output 135 db (A) @ 1m 140 db (A) @ 1m 145 db (A) @ 1m
Tones Continuous or Wail Tone Continuous or Wail Tone Continuous or Wail Tone
Frequency 560Hz 560Hz 560Hz
Effective range 1km 1,5km 2,5km
Voltage 400V 3 Phase 400V 3 Phase 400V 3 Phase
Motor Power 2.2kW 4kW 7.5kW
Duty Continuous Continuous Continuous
Material Cast Aluminium Cast Aluminium Cast Aluminium
Storage Temperature -40 to +70°C -40 to +70°C -40 to +70°C
Relative Humidity 90% at 20°C 90% at 20°C 90% at 20°C

Horn colours: 01 - WIDE AREA AUDIBLE

50kg 68kg 118kg -20ºC / +40ºC
(K-SML05) (K-SML 10) (K-SML 15)
