SIGNALLING

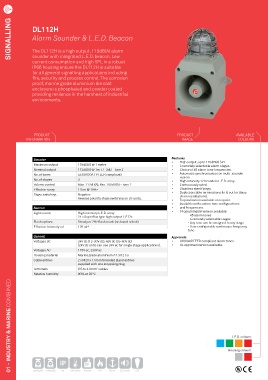

SIGNALLING DL112H

Alarm Sounder & L.E.D. Beacon

The DL112H is a high output, 119dB(A) alarm
sounder with integrated L.E.D. beacon. Low
current consumption and high SPL in a robust
IP66 housing ensure the DL112H is suitable
for all general signalling applications including
fire, security and process control. The corrosion
proof, marine grade aluminium die cast
enclosure is phosphated and powder coated
providing resilence in the harshest of industrial
environments.

PRODUCT PRODUCT AVAILABLE
INFORMATION IMAGE COLOURS

Sounder Features
•
High output, up to 119dB(A) SPL.
Maximum output 119dB(A) @ 1 metre • 3 remotely selectable alarm stages.
Nominal output 112dB(A) @ 1m +/- 3dB - Tone 2 • Choice of 45 alarm tone frequencies.
No. of tones 45 (UKOOA / PFEER compliant) • Automatic synchronisation on multi-sounder
system.
No. of stages 3 • High intensity 120 candela L.E.D. array .
Volume control Max. 112dB(A); Min. 100dB(A) - Tone 2 • Continuously rated.
Effective range 125m @ 1KHz • Stainless steel fixings.
• Duplicate cable terminations (in & out for daisy-
Stage switching Negative chain installations).
Reverse polarity stage switching on DC units. • Tropicalisation available on request.
• Available with custom tone configurations
Beacon • and frequencies.
• ‘Programmable’ version available:
Light source High intensity L.E.D. array
24 x Superflux type high output L.E.D’s - 45 alarm tones
- 4 remotely selectable stages
Flash options Steady or 2Hz flash mode (on board select) - Any tone can be assigned to any stage
Effective Intensity cd 120 cd* - User configurable continuous frequency
tone
General Approvals
Voltages DC 24V dc (12-30V dc); 48V dc (35-60V dc) • UKOOA/PFEER compliant alarm tones.
[24V dc units can use 24V ac for single stage applications]. • UL approved version available.
Voltages AC 115V ac; 230V ac
Housing material Marine grade aluminium A1 Si12 Cu
Cable entries 2 x M20 x 1.5mm threaded gland entries
supplied with one stoppoing plug
Terminals 0.5 to 4.0mm² cables
Relative humidity 90% at 20°C
01 - INDUSTRY & MARINE COMBINED

L.E.D. colours:

Housing colours:

IP

2,80kg (DC) 3.10kg (AC) 66 -25º/+55ºC Industry Fire Marine EL Sounder LED
