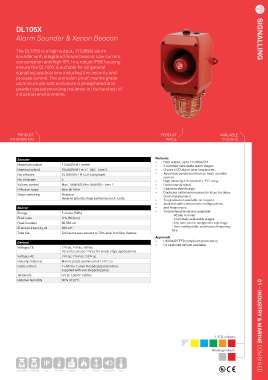

DL105X SIGNALLING
Alarm Sounder & Xenon Beacon SIGNALLING

The DL105X is a high output, 112dB(A) alarm
sounder with integrated Xenon beacon. Low current
consumption and high SPL in a robust IP66 housing
ensure the DL105X is suitable for all general
signalling applications including fire, security and
process control. The corrosion proof, marine grade
aluminium die cast enclosure is phosphated and
powder coated providing resilence in the harshest of
industrial environments.

PRODUCT PRODUCT AVAILABLE
INFORMATION IMAGE COLOURS

Sounder Features
•
High output, up to 112dB(A) SPL.
Maximum output 112dB(A) @ 1 metre • 3 remotely selectable alarm stages.
Nominal output 105dB(A) @ 1m +/- 3dB - Tone 2 • Choice of 32 alarm tone frequencies.
No. of tones 32 (UKOOA / PFEER compliant) • Automatic synchronisation on multi-sounder
system.
No. of stages 3 • High intensity 120 candela L.E.D. array .
Volume control Max. 105dB(A); Min. 96dB(A) - Tone 2 • Continuously rated.
Effective range 60m @ 1KHz • Stainless steel fixings.
• Duplicate cable terminations (in & out for daisy-
Stage switching Negative chain installations).
Reverse polarity stage switching on DC units. • Tropicalisation available on request.
• Available with custom tone configurations
Beacon • and frequencies.
• ‘Programmable’ version available:
Energy 5 Joules (5Ws)
- 45 alarm tones
Flash rate 1Hz (60 fpm) - 4 remotely selectable stages
Peak Candela 86,953 cd - Any tone can be assigned to any stage
Effective Intensity cd 200 cd* - User configurable continuous frequency
tone
Tube life Emissions are reduced to 70% after 8 million flashes
Approvals
General • UKOOA/PFEER compliant alarm tones.
•
UL approved version available.
Voltages DC 12V dc; 24V dc; 48V dc
DC units can use 24V ac for single stage applications.
Voltages AC 24V ac; 115V ac; 230V ac
Housing material Marine grade aluminium A1 Si12 Cu
Cable entries 2 x M20 x 1.5mm threaded gland entries
supplied with one stoppoing plug
Terminals 0.5 to 1.5mm² cables
Relative humidity 90% at 20°C

L.E.D. colours: 01 - INDUSTRY & MARINE COMBINED

Housing colours:

IP

2,10kg (DC) 2.35kg (AC) 66 -25º/+55ºC Industry Fire Marine EL Sounder Xenon
