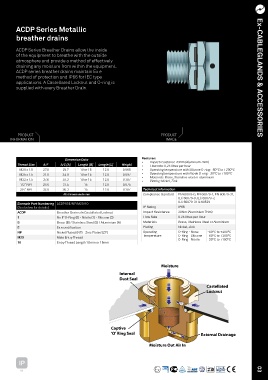

ACDP Series Metallic ACCESSORIES Ex CABLEGLANDS &
breather drains

ACDP Series Breather Drains allow the inside
of the equipment to breathe with the outside
atmosphere and provide a method of effectively
draining any moisture from within the equipment.
ACDP series breather drains maintain Ex e
method of protection and IP66 for IEC type Ex-CABLEGLANDS & ACCESSORIES
applications. A Castellated Locknut and O-ring is
supplied with every Breather Drain.

PRODUCT PRODUCT
INFORMATION IMAGE

Dimension Data Features:
•
Impact resistance 20Nm (Aluminum 7Nm)
Thread Size A/F A/C [A] Length [B] Length [L] Weight • Flow rate: 0,25 litres per hour
M20 x 1.5 27.0 29.7 10 or 15 12.0 0.065 • Operating temperature with Silicone O-ring: -60°C to +200°C
M25 x 1.5 31.8 34.9 10 or 15 12.0 0.097 • Operating temperature with Nitrile O-ring: -30°C to +100°C
• Materials: Brass, Stainless steel or aluminium
M32 x 1.5 37.6 41.3 10 or 15 12.0 0.107 • Plating: Nickel, Zink
1/2” NPT 28.6 31.4 15 12.0 0.075
3/4” NPT 33.0 36.3 15 12.0 0.107 Technical information
All dimensions in mm Compliance standard EN 60079-0, EN 60079-1, EN 60079-31,
IEC 60079-0, IEC 60079-7,
IEC 60079-31 & 60529
Example Part Numbering ACDP1BE/NP/M20/10
(See below for details) IP Rating IP66
ACDP Breather Drain c/w Castellated Locknut Impact Resistance 20Nm (Aluminium 7Nm)
1 No IP O-Ring (0) - Nitrile (1) - Silicone (3) Flow Rate 0.25 litres per Hour
B Brass (B) / Stainless Steel (S) / Aluminium (A) Materials Brass, Stainless Steel or Aluminium
E Ex e certification Plating Nickel, Zink
NP Nickel Plated (NP) - Zinc Plated (ZP) Operating O-Ring - None -60°C to +400°C
M20 Male Entry Thread Temperature O-Ring - Silicone -60°C to +200°C
O-Ring - Nitrile -30°C to +100°C
10 Entry Thread Length 10mm or 15mm

IP

66 03
