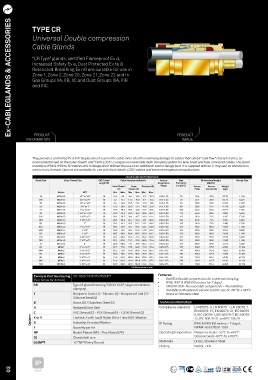

Ex CABLEGLANDS & ACCESSORIES

Ex-CABLEGLANDS & ACCESSORIES
TYPE CR
Universal Double compression

Cable Glands

“CR Type” glands, certified Flameproof Ex d,
Increased Safety Ex e, Dust Protected Ex ta &
Restricted Breathing Ex nR are suitable for use in
Zone 1, Zone 2, Zone 20, Zone 21, Zone 22 and in
Gas Groups IIA, IIB, IIC and Dust Groups IIIA, IIIB
and IIIC.

PRODUCT PRODUCT
INFORMATION IMAGE

They provide a controlled Ex d & IP displacement seal on the cable inner sheath minimising damage to cables that exhibit “cold flow” characteristics, an
environmental seal on the outer sheath and “CROCLOCK”, a unique non reversible multi clamping system for wire, braid and tape armoured cables. The gland
maintains IP66 & IP68 to 50 metres and is deluge proof without the use of an additional seal or deluge boot. It is supplied with an O-ring seal as standard on
metric entry threads. Options are available for use with lead sheath, LSOH cables and extreme temperature applications.

CABLE GLAND SELECTION TABLE
Gland Size Entry Thread Size ISO Thread Cable Acceptance Details Armour Max Dimensions/Weight Shroud Size
Length (B) Acceptance Protrusion (Metric)
Inner Sheath Outer Reduced (D) Range Length (L) Across Across Weight
(C) Sheath (D) Flats Corners (A) (kgs)
Metric NPT Min Max Min Max Min Max
16 M20x1.5 1/2” or 3/4” 16 3.4 8.4 8.4 13.5 6.7 10.3 0.15-1.25 78 25.4 28.0 0.178 EL24
20S M20x1.5 1/2” or 3/4” 16 7.2 11.7 11.5 16.0 9.4 12.5 0.15-1.25 78 25.4 28.0 0.173 EL24
20 M20x1.5 1/2” or 3/4” 16 9.4 14.0 15.5 21.1 12.0 17.6 0.15-1.25 78 30.0 33.0 0.233 EL30
25 M25x1.5 3/4” or 1” 16 13.5 20.0 20.3 27.4 16.8 23.9 0.15-1.60 90 38.0 41.4 0.416 EL38
32 M32x1.5 1” or 1 1/4” 16 19.5 26.3 26.7 34.0 23.2 30.5 0.15-2.00 105 46.0 50.6 0.772 EL46
40 M40x1.5 1 1/4” or 1 1/2” 16 23.0 32.2 33.0 40.6 28.6 36.2 0.20-2.00 113 55.0 60.5 1.093 EL55
50S M50x1.5 1 1/2” or 2” 16 28.1 38.2 39.4 46.7 34.8 42.4 0.20-2.50 125 65.0 71.5 1.255 EL65
50H M50x1.5 1 1/2” or 2” 16 28.1 38.2 45.7 53.2 41.1 48.5 0.20-2.50 125 65.0 71.5 1.255 EL65
50 M50x1.5 2” 16 33.1 44.1 45.7 53.2 41.1 48.5 0.30-2.50 125 65.0 71.5 1.400 EL65
63S M63x1.5 2” or 2 1/2” 19 39.2 50.1 52.1 59.5 47.5 54.8 0.30-2.50 125 80.0 88.0 2.550 EL80
63H M63x1.5 2 1/2” 19 39.2 50.1 58.4 65.8 53.8 61.2 0.30-2.50 125 80.0 88.0 2.104 EL80
63 M63x1.5 2 1/2” 19 46.7 56.0 58.4 65.8 53.8 61.2 0.30-2.50 125 80.0 88.0 2.104 EL80
75S M75x1.5 2 1/2” or 3” 19 52.1 62.0 64.8 72.2 60.2 68.0 0.30-2.50 131 90.0 99.0 2.916 EL90
75H M75x1.5 2 1/2” or 3” 19 52.1 62.0 71.1 78.0 66.5 73.4 0.30-2.50 131 90.0 99.0 2.916 EL90
75 M75x1.5 3” 19 58.0 68.0 71.1 78.0 66.5 73.4 0.30-2.50 131 90.0 99.0 2.315 EL90
80 M80x2 3” or 3 1/2” 25 62.2 72.0 77.0 84.0 71.9 79.4 0.45-3.15 170 104.0 115.2 4.953 EL104
80H M80x2 3” or 3 1/2” 25 62.2 72.0 79.6 90.0 75.0 85.4 0.45-3.15 170 104.0 115.2 4.953 EL104
85 M85x2 3” or 3 1/2” 25 69.0 78.0 79.6 90.0 75.0 85.4 0.45-3.15 170 104.0 115.2 4.070 EL104
90 M90x2 3 1/2” or 4” 25 74.0 84.0 88.0 96.0 82.0 91.4 0.45-3.15 170 114.0 125.7 5.129 EL114
90H M90x2 3 1/2” or 4” 25 74.0 84.0 92.0 102.0 87.4 97.4 0.45-3.15 170 114.0 125.7 5.129 EL114
100 M100x2 3 1/2” or 4” 25 82.0 90.0 92.0 102.0 87.4 97.4 0.45-3.15 170 114.0 125.7 4.368 EL114
All dimensions in mm
Features:
Example Part Numbering CR-1BCK1/NP/20/050NPT
(See below for details) • Exd/Exe Double compression for universal clamping
IP66, IP67 & IP68 (50 metres for 7 days)
•
CR Type of gland featuring “CROCLOCK”, single orientation • CROCKLOCK- No reversible components – No mistakes
clamping • Available with optional silicone seal for use at -60°to +180°C
1 Neoprene Seals (1) - Silicone (3) - Neoprene/Lead (2) - • Brass or Stainless steel
Silicone/Lead (4)
B Brass (B) / Stainless Steel (S) Technical information
R Reduced Bore Seal Compliance standard EN 60079-0, EN 60079-1, EN 60079-7,
C PVC Shroud (C) - PCP Shroud (P) - LSOH Shroud (3) EN 60079-15, EN 60079-31, IEC 60079-
0, IEC 60079-1, IEC 60079-7, IEC 60079-
Options K or V Locknut, Earth Tag & Nylon (K) or Fibre (V) IP Washer IP Rating 15, IEC 60079-31 and IEC 60529
S
Including Serrated Washer
IP66 & IP68 (50 metres - 7 days),
1 Quantity per kit NEMA 4X & DTS01 1991
NP Nickel Plated (NP) - Zinc Plated (ZP) Operating temperature Neoprene Seals -35°C to +90°C
20 Gland shell size Silicone Seals -60°C to +180°C
050NPT 1/2”NPT Entry Thread Materials Brass, Stainless Steel
Plating Nickel, Zink
IP
03 66/68
