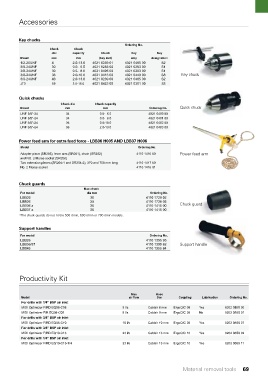

Page 69 - ingenioren

Accessories

Key chucks
Ordering No.
Check Chuck
clic capacity Chuck Key Key
Mount mm mm (key incl) only designation
1/2-20UNF 4 2.0-13.0 4021 0289 01 4021 0465 00 S2
3/8-24UNF 30 0.0- 6.5 4021 0283 00 4021 0293 00 S1
3/8-24UNF 30 0.5- 8.0 4021 0495 00 4021 0293 00 S1
3/8-24UNF 36 2.0-10.0 4021 0416 00 4021 0449 00 S8 Key chuck
3/8-24UNF 46 2.0-13.0 4021 0289 00 4021 0465 00 S2
JT3 59 3.0-16.0 4021 0423 00 4021 0301 00 S3

Quick chucks
Chuck dia Chuck capacity
Mount mm mm Ordering No. Quick chuck
UNF 3/8''-24 34 0.0- 6.5 4021 0400 00
UNF 3/8''-24 34 0.0- 8.0 4021 0401 00
UNF 3/8''-24 36 0.0-10.0 4021 0402 00
UNF 3/8''-24 36 2.0-13.0 4021 0403 00

Power feed arm for extra feed force - LBB36 H005 AND LBB37 H006
Model Ordering No.

Adapter piece (SR295), lever arm (SR201), chain (SR202) 4110 1416 80 Power feed arm
and NO. 2 Morse socket (SR206)
Two extension pieces (SR204-1 and SR204-2), 370 and 750 mm long 4110 1417 80
No. 2 Morse socket 4110 1416 01

Chuck guards
Max chuck
For model dia mm Ordering No.
LBB26 36 4110 1728 02
LBB26 30 4110 1728 03 Chuck guard
LBB36 a 36 4110 1415 00
LBB37 a 36 4110 1415 00
a The chuck guards do not fit the 500 r/min, 600 r/min or 700 r/min models.

Weight Air Air
with consumption inlet Stall
chuck at free speed Hose size thread torque With chuck Without chuck Support handles
For model Ordering No.
LBB26 4110 1355 95
LBB36/37 4110 1355 82 Support handle
LBB45 4110 1355 84

Productivity Kit

Max Hose
Model air flow 5 m Coupling Lubrication Ordering No.
For drills with 1/4" BSP air inlet
MIDI Optimizer F/RD EQ08-C08 9 l/s Cablair 8 mm ErgoQIC 08 Yes 8202 0850 00
MIDI Optimizer F/R EQ08-C08 9 l/s Cablair 8 mm ErgoQIC 08 No 8202 0850 01
For drills with 3/8" BSP air inlet
MIDI Optimizer F/RD EQ08-C10 16 l/s Cablair 10 mm ErgoQIC 08 Yes 8202 0850 07
For drills with 3/8" BSP air inlet
MIDI Optimizer F/RD EQ10-C13 23 l/s Cablair 13 mm ErgoQIC 10 Yes 8202 0850 02
For drills with 1/4" BSP air inlet
MIDI Optimizer F/RD EQ10-C13-1/4 23 l/s Cablair 13 mm ErgoQIC 10 Yes 8202 0850 11

Material removal tools 69
