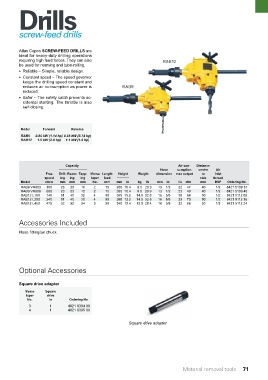

Page 71 - ingenioren

Drills

screw-feed drills

Atlas Copco SCREW-FEED DRILLS are
ideal for heavy-duty drilling operations
requiring high feed forces. They can also
be used for reaming and tube-rolling.
l Reliable – Simple, reliable design.
l Constant speed – The speed governor
keeps the drilling speed constant and
reduces air consumption as power is
reduced.
l Safer – The safety catch prevents ac-
cidental starting. The throttle is also
self-closing.

Model Forward Reverse
RAB9 0.85 kW (1.14 hp) 0.55 kW (0.74 hp)
RAB12 1.5 kW (2.0 hp) 1.1 kW (1.5 hp)

Capacity Air con- Distance
Hose sumption centre Air
Free Drill- Ream- Tapp- Morse Length Height Weight dimension max output to inlet
speed ing ing ing taper feed side thread
Model r/min mm mm mm No. mm mm in kg lb mm in l/s cfm mm BSP Ordering No.
RAB9 VR003 300 23 23 16 2 75 265 10.4 9.5 20.9 13 1/2 22 47 40 1/2 8421 5109 37
RAB9 VR006 600 23 23 12 2 75 265 10.4 9.5 20.9 13 1/2 23 49 40 1/2 8421 5109 45
RAB12 L150 140 51 40 32 4 90 385 15.2 14.9 32.8 16 5/8 30 64 50 1/2 8421 5112 08
RAB12 L250 240 51 40 30 4 90 385 13.2 14.9 32.8 16 5/8 33 70 50 1/2 8421 5112 16
RAB12 L450 475 32 32 24 3 90 340 13.4 12.9 28.4 16 5/8 32 68 50 1/2 8421 5112 24

Accessories Included

Hose fitting/air chuck

Optional Accessories

Square drive adapter
Morse Square
taper drive
No. in Ordering No.
3 1 4021 0394 00
4 1 4021 0395 00

Square drive adapter

Material removal tools 71
