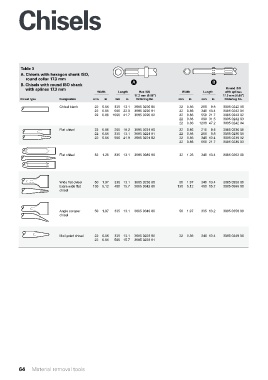

Chisels

Table 3
A B
A. Chisels with hexagon shank ISO,
round collar 17.3 mm
B. Chisels with round ISO shank A B
with splines 17.3 mm Round ISO
Width Length Hex ISO Width Length with splines
17.3 mm (0.68") 17.3 mm (0.68")
Chisel type Designation mm in mm in Ordering No. mm in mm in Ordering No.
Chisel blank 22 0.86 335 13.1 3085 0220 00 22 0.86 250 9.8 3085 0242 00
22 0.86 560 22.0 3085 0220 01 22 0.86 340 13.4 3085 0242 01
22 0.86 1060 41.7 3085 0220 02 22 0.86 550 21.7 3085 0242 02
22 0.86 800 31.5 3085 0242 03
22 0.86 1200 47.2 3085 0242 04
Flat chisel 22 0.86 260 10.2 3085 0221 00 22 0.86 215 8.5 3085 0236 00
22 0.86 335 13.1 3085 0221 01 22 0.86 250 9.8 3085 0236 01
22 0.86 560 41.9 3085 0221 02 22 0.86 340 13.4 3085 0236 02
22 0.86 550 21.7 3085 0236 03

Flat chisel 32 1.26 335 13.1 3085 0989 00 32 1.26 340 13.4 3085 0252 00

Wide flat chisel 50 1.97 335 13.1 3085 0235 00 50 1.97 340 13.4 3085 0250 00
Extra wide flat 130 5.12 400 15.7 3085 0342 00 130 5.12 400 15.7 3085 0998 00
chisel

Angle scraper 50 1.97 335 13.1 3085 0349 00 50 1.97 335 13.2 3085 0350 00
chisel

Moil point chisel 22 0.86 335 13.1 3085 0223 00 22 0.86 340 13.4 3085 0249 00
22 0.86 560 15.7 3085 0223 01
