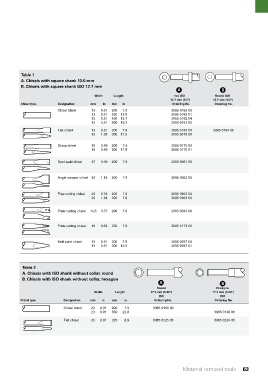

Table 1
A B
A. Chisels with square shank 13.0 mm
B. Chisels with square shank ISO 12.7 mm
A B
Width Length Hex ISO Round ISO
12.7 mm (1/2") 12.7 mm (1/2")
Chisel type Designation mm in mm in Ordering No. Ordering No.
Chisel blank 13 0.51 200 7.9 3085 0182 00
13 0.51 350 13.8 3085 0182 01
13 0.51 400 15.7 3085 0182 04
13 0.51 500 19.7 3085 0182 05

Flat chisel 13 0.51 200 7.9 3085 0183 00 3085 0184 00
35 1.38 300 11.8 3085 0376 00

Sharp chisel 15 0.59 200 7.9 3085 0170 00
15 0.59 300 11.8 3085 0170 01

Spot weld chisel 17 0.69 200 7.9 3085 0301 00

Angle scraper chisel 30 1.18 200 7.9 3085 0262 00

Pipe cutting chisel 20 0.78 200 7.9 3085 0302 00
35 1.38 200 7.9 3085 0303 00

Plate cutting chisel 14.5 0.57 200 7.9 3085 0263 00

Plate cutting chisel 16 0.62 200 7.9 3085 0173 00

Moil point chisel 13 0.51 200 7.9 3085 0297 00
13 0.51 305 12.0 3085 0297 01

Table 2
A. Chisels with ISO shank without collar, round
B. Chisels with ISO shank without collar, hexagon
A B
Round Hexagon
Width Length 17.3 mm (0.68") 17.3 mm (0.68")
ISO ISO
Chisel type Designation mm in mm in Ordering No. Ordering No.
Chisel blank 23 0.91 200 7.9 3085 0150 00
23 0.91 560 22.0 3085 0140 01
Flat chisel 23 0.91 225 8.9 3085 0225 00 3085 0224 00

Material removal tools 63
