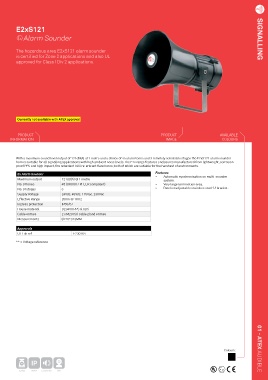

E2xS121 SIGNALLING
Alarm Sounder SIGNALLING

The hazardous area E2xS121 alarm sounder
is certified for Zone 2 applications and also UL
approved for Class I Div 2 applications.

Currently not available with ATEX approval

PRODUCT PRODUCT AVAILABLE
INFORMATION IMAGE COLOURS

With a maximum sound level output of 121dB(A) at 1 metre and a choice of 45 alarm tones and 3 remotely selectable stages the E2xS121 alarm sounder
horn is suitable for all signalling applications with high ambient noise levels. The E2x range features enclosures manufactured from lightweight, corrosion
proof PPS and high impact, fire retardant ABS re-entrant flare horns; both of which are suitable for the harshest of environments.

Ex Alarm Sounder Features
• Automatic synchronisation on multi-sounder
Maximum output 121dB(A) @ 1 metre system.
No. of tones 45 (UKOOA / PFEER compliant) • Very large termination area.
No. of stages 3 • Ratchet adjustable stainless steel ‘U’ bracket.
Supply Voltage 24Vdc, 48Vdc, 115Vac, 230Vac
Effective Range 200m @ 1KHz
Ingress protection IP66/67
House material UL94V0 PPS & ABS
Cable entries 2 x M20 ISO cable gland entries
Measurements Ø220*323MM

Approvals
UL File ref E230764
** = Voltage reference

Colours: 01 - ATEX AUDIBLE

IP

3,21kg 66/67 EL Sounder Bell
