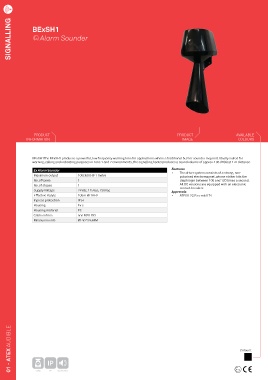

Page 76 - ingenioren

SIGNALLING

SIGNALLING BExSH1

Alarm Sounder

PRODUCT PRODUCT AVAILABLE
INFORMATION IMAGE COLOURS

BExSH1The BExSH1 produces a powerful, low frequency warning tone for applications where a traditional buzzer sound is required. Ideally suited for
warning, calling and indicating purposes in zone 1 and 2 environments, the signalling hooterproduces a sound volume of approx. 108 dB(A) at 1 m distance.

Ex Alarm Sounder Features
The driver system consists of a strong, non-
•
Maximum output 108Db(A) @ 1 metre polarised electromagnet, whose striker hits the
No. of tones 1 diaphragm between 100 and 120 times a second.
No. of stages 1 All DC versions are equipped with an electronic
contact breakrer.
Supply Voltage 24Vdc, 115Vac, 230Vac Approvals
Effective Range 100m @ 1KHz • ATEX II 2G Ex e mb II T4
Ingress protection IP54
Housing Ex e
Housing material PC
Cable entries one M20 ISO
Measurements Ø140*345MM

01 - ATEX AUDIBLE 1,3kg IP EL Sounder Colours:

54
