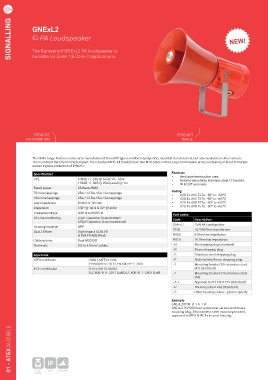

SIGNALLING GNExL2 NEW!

PA Loudspeaker

The flameproof GNExL2 PA loudspeaker is
suitable for Zone 1 & Zone 2 applications.

PRODUCT PRODUCT AVAILABLE
INFORMATION IMAGE COLOURS

The GNEx range features enclosures manufactured from GRP (glass reinforced polyester), moulded in natural red, but also available in other colours.
The re-entrant flare horn is high impact, fire retardant ABS. All models have two M20 cable entries, large termination areas containing in & out terminals
and an ingress protection of IP66/67.

Specification Features
• Very large termination area.
SPL 105dB +/-3dB @ 1w @ 1m - Pink • Ratchet adjustable stainless steel ‘U’ bracket.
119dB +/-3dB @ 25w (rated) @ 1m • IN & OUT terminals
Rated power 25 Watts RMS
70v line tappings 25w / 12.5w / 6w / 2w tappings Coding
II 2G Ex d IIC T4 Ta. -60° to +50°C
•
100v line tappings 25w / 12.5w / 6w / 2w tappings • II 2G Ex d IIC T3 Ta. -60° to +65°C
Low impedence 8 Ohm or 16 Ohm • II 2G Ex d IIB T6 Ta. -60° to +50°C
Dispersion 130° @ 1kHz & 32° @ 4kHz • II 2G Ex d IIB T5 Ta. -60° to +65°C
Frequency range 300Hz to 8000 Hz Part codes
DC Line monitoring 2.2μF Capacitor (Transformer) Code Description:
470μF Capacitor (Low impedance)
GNExL2 25W PA Loudspeaker
Housing material GRP
V100 70/100V line transformer
BExL15 flare High impact UL94 V0
& 5VA FR ABS (Red) R008 8 Ohm low impedance
Cable entries Dual M20 ISO R016 16 Ohm low impedance
Terminals 0.5 to 4.0mm² cables. -N No stopping plug (standard)
-B Brass stopping plug
Approvals -S Stainless steel stopping plug
ATEX certificate SIRA 13ATEX1139X -P Nickel plated brass stopping plug
EN 60079-0 : 2012, EN 60079-1 : 2007 -1 Mounting bracket 304 stainless steel
IECEx certificate IECEx SIR 13.0029X (A2) (standard)
IEC 60079-0 : 2011 (Ed6), IEC 60079-1 : 2007 (Ed6) -2 Mounting bracket 316 stainless steel
(A4)
-A-1 Approval to ATEX & IECEx (standard)
-R Housing colour Red (standard)
-S Other housing colour - please specify

Example
GNExL2V100-B-1-A-1-R
GNExL2 70/100V lne transformer version with brass
stopping plug, 304 stainless steel mounting bracket,
approved to ATEX & IECEx in a red housing.

01 - ATEX AUDIBLE

66/67
4.3kg /
3.95kg IP Loudspeaker
