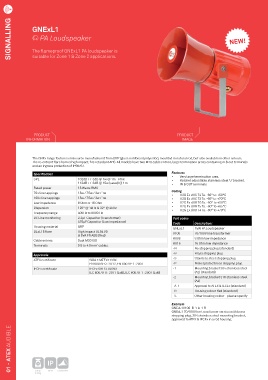

SIGNALLING GNExL1 NEW!

PA Loudspeaker

The flameproof GNExL1 PA loudspeaker is
suitable for Zone 1 & Zone 2 applications.

PRODUCT PRODUCT AVAILABLE
INFORMATION IMAGE COLOURS

The GNEx range features enclosures manufactured from GRP (glass reinforced polyester), moulded in natural red, but also available in other colours.
The re-entrant flare horn is high impact, fire retardant ABS. All models have two M20 cable entries, large termination areas containing in & out terminals
and an ingress protection of IP66/67.

Specification Features
• Very large termination area.
SPL 102dB +/-3dB @ 1w @ 1m - Pink • Ratchet adjustable stainless steel ‘U’ bracket.
113dB +/-3dB @ 15w (rated) @ 1m • IN & OUT terminals
Rated power 15 Watts RMS
70v line tappings 15w / 7.5w / 3w / 1w Coding
•
II 2G Ex d IIC T4 Ta. -60° to +50°C
100v line tappings 15w / 7.5w / 3w / 1w • II 2G Ex d IIC T3 Ta. -60° to +70°C
Low impedence 8 Ohm or 16 Ohm • II 2G Ex d IIB T6 Ta. -60° to +50°C
Dispersion 120° @ 1kHz & 32° @ 4kHz • II 2G Ex d IIB T5 Ta. -60° to +65°C
II 2G Ex d IIB T4 Ta. -60° to +70°C
•
Frequency range 400Hz to 8000 Hz
DC Line monitoring 2.2μF Capacitor (Transformer) Part codes
470μF Capacitor (Low impedance)
Code Description:
Housing material GRP
GNExL1 15W PA Loudspeaker
BExL15 flare High impact UL94 V0 V100 70/100V line transformer
& 5VA FR ABS (Red)
Cable entries Dual M20 ISO R008 8 Ohm low impedance
Terminals 0.5 to 4.0mm² cables. R016 16 Ohm low impedance
-N No stopping plug (standard)
Approvals -B Brass stopping plug
-S Stainless steel stopping plug
ATEX certificate SIRA 13ATEX1139X
EN 60079-0 : 2012, EN 60079-1 : 2007 -P Nickel plated brass stopping plug
IECEx certificate IECEx SIR 13.0029X -1 Mounting bracket 304 stainless steel
IEC 60079-0 : 2011 (Ed6), IEC 60079-1 : 2007 (Ed6) (A2) (standard)
-2 Mounting bracket 316 stainless steel
(A4)
-A-1 Approval to ATEX & IECEx (standard)
-R Housing colour Red (standard)
-S Other housing colour - please specify
Example
GNExL1V100-B-1-A-1-R
GNExL1 70/100V lne transformer version with brass
stopping plug, 304 stainless steel mounting bracket,
approved to ATEX & IECEx in a red housing.
