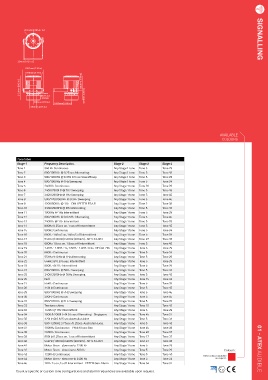

Ø139.0mm [Ø5.47 in.] SIGNALLING SIGNALLING

3.0mm [0.12 in.]
182.7mm [7.19 in.]
139.0mm [5.47 in.]
213.9mm [8.42 in.] 128.5mm [5.06 in.]

Ø7.0mm
[Ø0.28 in.]
3 POS'NS 85.4mm [3.36 in.]
30.0mm [1.18 in.]
160.0mm [6.30 in.]
60.0mm [2.36 in.]

PRODUCT PRODUCT AVAILABLE
INFORMATION IMAGE COLOURS

Tone table
Stage 1 Frequency Description. Stage 2 Stage 3 Stage 4
Tone 1 340 Hz Continuous Any Stage 1 tone Tone 5 Tone 29
Tone 2 800/1000Hz @ 0.25 sec Alternating Any Stage 1 tone Tone 5 Tone 45
Tone 3 500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop Any Stage 1 tone Tone 5 Tone 29
Tone 4 800/1000Hz @ 1Hz Sweeping Any Stage 1 tone Tone 5 Tone 34
Tone 5 2400Hz Continuous Any Stage 1 tone Tone 20 Tone 29
Tone 6 2400/2900Hz @ 7Hz Sweeping Any Stage 1 tone Tone 5 Tone 45
Tone 7 2400/2900Hz @ 1Hz Sweeping Any Stage 1 tone Tone 5 Tone 45
Tone 8 500/1200/500Hz @ 0.3Hz Sweeping Any Stage 1 tone Tone 5 Tone 45
Tone 9 1200/500Hz @ 1Hz - DIN / PFEER P.T.A.P. Any Stage 1 tone Tone 2 Tone 38
Tone 10 2400/2900Hz @ 2Hz Alternating Any Stage 1 tone Tone 5 Tone 45
Tone 11 1000Hz @ 1Hz Intermittent Any Stage 1 tone Tone 5 Tone 29
Tone 12 800/1000Hz @ 0.875Hz Alternating Any Stage 1 tone Tone 5 Tone 45
Tone 13 2400Hz @ 1Hz Intermittent Any Stage 1 tone Tone 5 Tone 29
Tone 14 800Hz 0.25sec on, 1 sec off Intermittent Any Stage 1 tone Tone 5 Tone 45
Tone 15 800Hz Continuous Any Stage 1 tone Tone 5 Tone 34
Tone 16 660Hz 150mS on, 150mS off Intermittent Any Stage 1 tone Tone 5 Tone 29
Tone 17 544Hz (100mS)/440Hz (400mS) - NF S 32-001 Any Stage 1 tone Tone 27 Tone 45
Tone 18 660Hz 1.8sec on, 1.8sec off Intermittent Any Stage 1 tone Tone 5 Tone 45
Tone 19 1.4KHz-1.6KHz 1s, 1.6KHz-1.4KHz 0.5s -NFC48-265 Any Stage 1 tone Tone 5 Tone 29
Tone 20 660Hz Continuous Any Stage 1 tone Tone 5 Tone 34
Tone 21 554Hz/440Hz @ 1Hz Alternating Any Stage 1 tone Tone 5 Tone 29
Tone 22 544Hz @ 0.875 sec. Intermittent Any Stage 1 tone Tone 5 Tone 29
Tone 23 800Hz @ 2Hz Intermittent Any Stage 1 tone Tone 5 Tone 29
Tone 24 800/1000Hz @ 50Hz Sweeping Any Stage 1 tone Tone 5 Tone 34
Tone 25 2400/2900Hz @ 50Hz Sweeping Any Stage 1 tone Tone 5 Tone 45
Tone 26 Bell Any Stage 1 tone Tone 15 Tone 34
Tone 27 554Hz Continuous Any Stage 1 tone Tone 5 Tone 29
Tone 28 440Hz Continuous Any Stage 1 tone Tone 5 Tone 45
Tone 29 800/1000Hz @ 7Hz Sweeping Any Stage 1 tone Tone 5 Tone 45
Tone 30 300Hz Continuous Any Stage 1 tone Tone 5 Tone 45
Tone 31 660/1200Hz @ 1Hz Sweeping Any Stage 1 tone Tone 5 Tone 29
Tone 32 Two tone chime Any Stage 1 tone Tone 15 Tone 45
Tone 33 745Hz @ 1Hz Intermittent Any Stage 1 tone Tone 5 Tone 29
Tone 34 1000 & 2000Hz @ 0.5 sec Alternating - Singapore Any Stage 1 tone Tone 45 Tone 37
Tone 35 420Hz @ 0.625 sec Australian Alert Any Stage 1 tone Tone 5 Tone 34
Tone 36 500-1200Hz 3.75sec /0.25sec. Australian Evac. Any Stage 1 tone Tone 5 Tone 45
Tone 37 1000Hz Continuous - PFEER Toxic Gas Any Stage 1 tone Tone 45 Tone 38
Tone 38 2000Hz Continuous Any Stage 1 tone Tone 45 Tone 37
Tone 39 800Hz 0.25sec on, 1 sec off Intermittent Any Stage 1 tone Tone 17 Tone 37
Tone 40 544Hz (100mS)/440Hz (400mS) - NF S 32-001 Any Stage 1 tone Tone 27 Tone 38
Tone 41 Motor Siren - slow rise to 1200 Hz Any Stage 1 tone Tone 5 Tone 29
Tone 42 Motor Siren - slow rise to 800 Hz Any Stage 1 tone Tone 5 Tone 29 Colours: 01 - ATEX AUDIBLE
Tone 43 1200 Hz Continuous Any Stage 1 tone Tone 5 Tone 45
Other colours available
Tone 44 Motor Siren - slow rise to 2400 Hz Any Stage 1 tone Tone 5 Tone 34 on request.
Tone 45 1KHz 1s on, 1s off Intermittent - PFEER Gen. Alarm Any Stage 1 tone Tone 34 Tone 37
Country specific or custom tone configurations and alarm frequencies are available upon request.
