P. 127

DRAFT - 05 Aug 2010

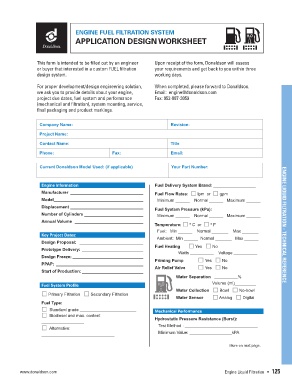

ENGINE fuEl fIltratIoN systEm

applIcatIoN dEsIGN workshEEt

This form is intended to be filled out by an engineer Upon receipt of the form, Donaldson will assess
or buyer that interested in a custom FUEL filtration your requirements and get back to you within three
design system. working days.

For proper development/design engineering solution, When completed, please forward to Donaldson.
we ask you to provide details about your engine, Email: engine@donaldson.com
project due dates, fuel system and performance Fax: 952-887-3059
(mechanical and filtration), system mounting, service,
final packaging and product markings.

Company Name: Revision:

Project Name:
Contact Name: Title

Phone: Fax: Email:

Current Donaldson Model Used: (if applicable) Your Part Number:

Engine Information Fuel Delivery System Brand: __________________
Manufacturer _______________________________ Fuel Flow Rates: ¨ lpm or ¨ gpm
Model ______________________________________ Minimum ______ Normal ______ Maximum ______
Displacement _______________________________
Fuel System Pressure (kPa):
Number of Cylinders _________________________ Minimum ______ Normal ______ Maximum ______
Annual Volume _____________________________
Temperature: ¨ º C or ¨ º F ENGINE LIQUID FILTRATION - TECHNICAL REFERENCE
Fuel: Min ______ Normal _______ Max _______
key project dates:
Ambient: Min ______ Normal _______ Max ______
Design Proposal: ___________________________
Fuel Heating ¨ Yes ¨ No
Prototype Delivery: __________________________
Watts __________ Voltage __________
Design Freeze: ______________________________
Priming Pump ¨ Yes ¨ No
PPAP: _____________________________________
Air Relief Valve ¨ Yes ¨ No
Start of Production: __________________________
Water Separation __________%
Volume (ml)_________
fuel system profile
Water Collection ¨ Bowl ¨ No-bowl
¨ Primary Filtration ¨ Secondary Filtration
Water Sensor ¨ Analog ¨ Digital
Fuel Type:
¨ Standard grade ________________________ mechanical performance
¨ Biodiesel and max. content
__________________ Hydrostatic Pressure Resistance (Burst):
¨ Alternative: Test Method : _______________________________
_______________________________ Minimum Value: __________________kPA
