DRAFT - 05 Aug 2010

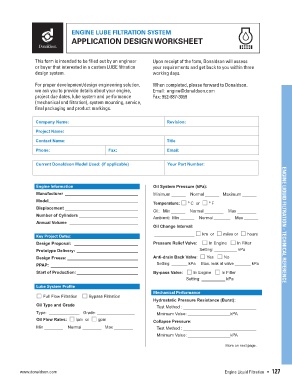

ENGINE lubE FIlTRATION sysTEm

ApplIcATION dEsIGN wORkshEET

This form is intended to be filled out by an engineer Upon receipt of the form, Donaldson will assess
or buyer that interested in a custom LUBE filtration your requirements and get back to you within three
design system. working days.

For proper development/design engineering solution, When completed, please forward to Donaldson.
we ask you to provide details about your engine, Email: engine@donaldson.com
project due dates, lube system and performance Fax: 952-887-3059
(mechanical and filtration), system mounting, service,
final packaging and product markings.

Company Name: Revision:
Project Name:

Contact Name: Title
Phone: Fax: Email:

Current Donaldson Model Used: (if applicable) Your Part Number:

Engine Information Oil System Pressure (kPa):
Manufacturer _______________________________ Minimum ______ Normal ______ Maximum ______
Model ______________________________________
Temperature: ¨ º C or ¨ º F
Displacement _______________________________
Oil: Min ______ Normal ________ Max ________
Number of Cylinders _________________________
Ambient: Min ______ Normal _______ Max ______
Annual Volume _____________________________
Oil Change Interval: ENGINE LIQUID FILTRATION - TECHNICAL REFERENCE
_________________ ¨ km or ¨ miles or ¨ hours
key project dates:
Design Proposal: ___________________________ Pressure Relief Valve: ¨ In Engine ¨ In Filter
Prototype Delivery: __________________________ Setting: __________ kPa
Design Freeze: ______________________________ Anti-drain Back Valve: ¨ Yes ¨ No
PPAP: _____________________________________ Setting: _______ kPa Max. leak at valve _______ kPa
Start of Production: __________________________ By-pass Valve: ¨ In Engine ¨ In Filter
Setting: __________ kPa
lube system profile
mechanical performance
¨ Full Flow Filtration ¨ Bypass Filtration
Hydrostatic Pressure Resistance (Burst):
Oil Type and Grade Test Method : _______________________________
Type: _____________ Grade: ________________ Minimum Value: __________________kPA
Oil Flow Rates: ¨ lpm or ¨ gpm Collapse Pressure:
Min ________ Normal ________ Max ________ Test Method : _______________________________
Minimum Value: __________________kPA
More on next page.

www.donaldson.com Engine Liquid Filtration • 127
