Coolant Filtration

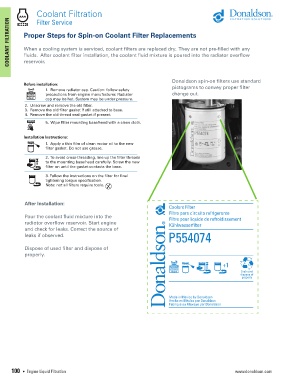

COOLANT FILTRATION Proper Steps for Spin-on Coolant Filter Replacements
Filter Service

When a cooling system is serviced, coolant filters are replaced dry. They are not pre-filled with any
fluids. After coolant filter installation, the coolant fluid mixture is poured into the radiator overflow
Proper Installation of Coolant Filters
reservoir.
Spin-on Filters
Donaldson spin-on filters use standard
Before installation: pictograms to convey proper filter
1. Remove radiator cap. Caution: follow safety
precautions from engine manufacturer. Radiator change out.
cap may be hot. System may be under pressure.
2. Unscrew and remove the old filter.
3. Remove the old filter gasket if still attached to base.
4. Remove the old thread seal gasket if present.
5. Wipe filter mounting base/head with a clean cloth.

Installation Instructions:
1. Apply a thin film of clean motor oil to the new
filter gasket. Do not use grease.
2. To avoid cross-threading, line up the filter threads
to the mounting base/head carefully. Screw the new
filter on until the gasket contacts the base.

3. Follow the instructions on the filter for final
tightening torque specification.
Note: not all filters require tools.

After Installation:
1. Pour the coolant fluid mixture into the radiator overflow
After Installation:
Coolant Filter
reservoir. Start engine and check for leaks. Correct the source Coolant Filter
Filtro para circuito refrigerante
of leaks if any are observed. Filtro para circuito refrigerante
Pour the coolant fluid mixture into the Filtre pour liquide de refroidissement
Filtre pour liquide de refroidissement
radiotor overflow reservoir. Start engine Kühlwasserfilter
Kühlwasserfilter
and check for leaks. Correct the source of
P552075
leaks if observed. P554074
Dispose of used filter and dispose of
properly.
+1 24 Hour Emergency Contact ChemTel: +1-813-248-0585
Drain and Dober TR84743
dispose of
properly

15 units
Substitute for Made in Mexico by Donaldson
DCA4 and BTA PLUS Hecho en México por Donaldson
Fabriqué au Mexique par Donaldson

100 • Engine Liquid Filtration www.donaldson.com
