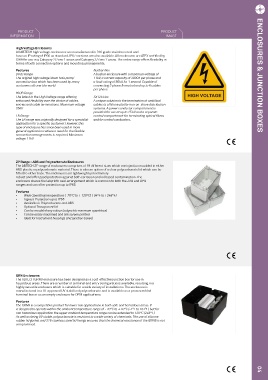

High Voltage Enclosures
All ABTECH high voltage enclosures are manufactured in 316 grade stainless steel and
have an IP rating of IP66 as standard. IP67 versions are also available. All enclosures are ATEX certified by
SIRA for use in a Category 2/Zone 1 areas and Category 3/Zone 2 areas. The entire range offers flexibility in
terms of both connection options and mounting arrangements.
Features Busbar Box
DPJB Range A busbar enclosure with a maximum voltage of ENCLOSURES & JUNCTION BOXES
The original high voltage ‘down hole pump‘ 11kV, a current capacity of 3000A per phase and
connection box which has been used by many a fault rating of 80kA for 1 second. Capable of
customers all over the world. connecting 3 phase & neutral and up to 6 cables
per phase.
HVJB Range
The latest in the High Voltage range offering SX125 Box
enhanced flexibility over the choice of cables, A unique solution to the termination of umbilical
entries and cable terminations. Maximum voltage cables to offshore platform or on-shore distribution
35kV. systems. A power conductor compartment is
provided for use at up to 15 kV and a separate
LR Range control compartment for terminating optical fibres
The LR range was originally designed for a specialist and/or control conductors.
application for a specific customer. However, this
type of enclosure has since been used in more
general applications where a need for the flexible
connection arrangements is required. Maximum
voltage 11kV.

ZP Range - ABS and Polycarbonate Enclosures
The ABTECH ZP range of enclosures comprises of 19 different sizes which are injection moulded in either
ABS plastic or polycarbonate material. There is also an option of a clear polycarbonate lid which can be
fitted to either base. The enclosures are lightweight yet extremely
robust and offer good protection against both corrosion and oil based contamination. The
enclosure shares the labyrinth seal arrangement which is common to both the ZAG and BPG
ranges and can offer protection up to IP65.
Features
• Wide Operating Temperature (- 70°C to + 120°C) (-94°F to +248°F)
• Ingress Protection up to IP65
• Available in Polycarbonate and ABS
• Optional Transparent lid
• Can be moulded any colour (subject to minimum quantities)
• Can be easily machined and silk screen printed
• Ideal for Instrument housings and junction boxes)

GRN Enclosures
The ABTECH GRN8 enclosure has been designed as a cost-effective junction box for use in
hazardous areas. There are a number of terminal and entry configurations available, resulting in a
highly versatile enclosure which is suitable for a wide variety of installations. The enclosure is
manufactured in a UL approved UV stabilized polycarbonate and is available as a preassembled
terminal box or as an empty enclosure for OEM applications.
Features
The GRN8 is a competitive product for lower risk applications in both safe and hazardous areas. It
is designed to operate within the ambient temperature range of - 20°C to + 40°C (-4°F to 104°F) but for
non hazardous application the upper ambient temperature range can be extended to 120°C (248°F).
As well as being UV stable, polycarbonate is resistant to a wide variety of chemicals. The use of silicone
rubber lid gasket and 316 stainless steel lid fixings ensures that the chemical resistance of the GRN8 is not
compromised. 04
