STRAPPING & BUNDLING

STRAPPING & BUNDLING

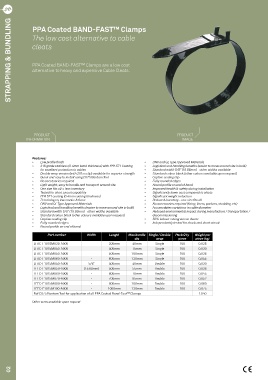

PPA Coated BAND-FAST™ Clamps
The low cost alternative to cable

cleats

PPA Coated BAND-FAST™ Clamps are a low cost
alternative to heavy and expensive Cable Cleats.

PRODUCT PRODUCT
INFORMATION IMAGE

Features:
• Low profile finish • DNV and GL Type Approved Materials
• 316 grade stainless (0.4mm band thickness) with PPA 571 Coating • Logistical and handling benefits (easier to move around site in bulk)
for excellent protection to cables • Standard width 5/8” (15.88mm) - other widths available
• Double wrap version (with 201ss clip) available for superior strength • Standard colour black (other colours available upon request)
• Quick and easy to install using C075 Bantam Tool • Captive sealing clip
• No accessories required • Fully rounded edges
• Light weight, easy to handle and transport around site • Round profile on end of band
• One size fits all = less inventory • Improved health & safety during installation
• Tested for short circuit capability • Significantly lower cost compared to cleats
• PPA 571 coating (0.4mm coating thickness) • Significant weight reduction
• Zero halogen, low smoke & fume • Reduced inventory - one size fits all
• DNV and GL Type Approved Materials • No accessories required (fixing, liners, packers, studding, etc)
• Logistical and handling benefits (easier to move around site in bulk) • Accomodates variations in cable diameter
• Standard width 5/8” (15.88mm) - other widths available • Reduced environmental impact during manufacture / transportation /
• Standard colour black (other colours available upon request) decommissioning
• Captive sealing clip • 50% Labour saving versus cleats
• Fully rounded edges • Independently tested for shock and short circuit
• Round profile on end of band
Part number Width Length Max bundle Single / Double Pack Q’ty Weight per
dia wrap piece piece (kg)
LFAC-F1015M030-A900 - 300mm 40mm Single 100 0.025
LFAC-F1015M040-A900 - 400mm 75mm Single 100 0.030
LFAC-F1015M050-A900 - 500mm 100mm Single 100 0.038
LFAC-F1015M060-A900 - 600mm 130mm Single 100 0.045
LFAC-F1015M040-A900 5/8” 400mm 40mm Double 100 0.030
LFFC-F1015M050-A900 (15.88mm) 500mm 55mm Double 100 0.038
LFFC-F1015M060-A900 - 600mm 70mm Double 100 0.045
LFFC-F1015M070-A900 - 700mm 85mm Double 100 0.052
LFFC-F1015M080-A900 - 800mm 100mm Double 100 0.060
LFFC-F1015M100-A900 - 1000mm 130mm Double 100 0.075
Ref C075 Bantam Tool for application of all PPA Coated Band-Fast™ Clamps 1.040
Other sizes available upon request
