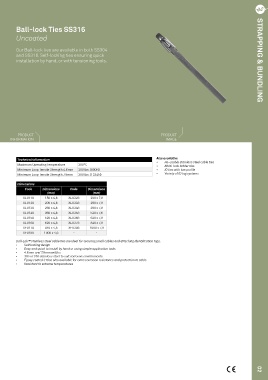

Page 147 - ingenioren

Ball-lock Ties SS316 BUNDLING STRAPPING &
Uncoated

Our Ball-lock ties are available in both SS304
and SS316. Self-locking ties ensuring quick
installation by hand, or with tensioning tools. STRAPPING & BUNDLING

PRODUCT PRODUCT
INFORMATION IMAGE

Technical information Also available:
Re-usable stainless steel cable ties
•
Maximum Operating Temperature 300°C • Multi-lock ladder ties
Minimum Loop Tensile Strength 4,6mm 200 lbs. (890N) • ID ties with low profile
Minimum Loop Tensile Strength 7,9mm 300 lbs. (1334N) • Variety of ID tag systems
Dimensions
Code Dimensions Code Dimensions
(mm) (mm)
XE0118 150 x 4,6 XE0328 200 x 7,9
XE0128 200 x 4,6 XE0338 260 x 7,9
XE0138 260 x 4,6 XE0348 360 x 7,9
XE0148 360 x 4,6 XE0358 520 x 7,6
XE0158 520 x 4,6 XE0368 620 x 7,9
XE0168 620 x 4,6 XE0378 840 x 7,9
XE0178 840 x 4,6 XE0388 1000 x 7,9
XE0188 1000 x 4,6 - -
Ball-Lok™ stainless steel cable ties are ideal for securing small cables and attaching identification tags.
• Self locking design
• Easy and quick to install by hand or using simple application tools
• 4.6mm and 7.9mm widths
• 304 or 316 stainless steel to suit corrosive environments
• Epoxy coated 316ss also available for extra corrosion resistance and protection to cable
• Resistant to extreme temperatures 02
