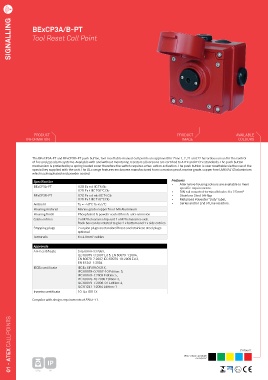

SIGNALLING

SIGNALLING BExCP3A/B-PT

Tool Reset Call Point

PRODUCT PRODUCT AVAILABLE
INFORMATION IMAGE COLOURS

The BExCP3A-PT and BExCP3B-PT push button, tool resettable manual call points are approved for Zone 1, 2, 21 and 22 hazardous areas for the control
of fire and gas alarm systems. Available with and without monitoring resistors all versions are certified to ATEX and IECEx standards. The push button
mechanism is protected by a spring loaded cover therefore the switch requires a two-action activation. The push button is user resettable via the use of the
special key supplied with the unit. The BEx range features enclosures manufactured from corrosion proof, marine grade, copper free LM6 (A413) aluminium
which is phosphated and powder coated.
Specification Features
Alternative housing colours are available to meet
•
BExCP3A-PT II 2G Ex e d IIC T6 Gb specific requirements.
II 2D Ex t IIIC T60°C Db • DIN rail mounted terminal blocks: 8 x 2.5mm²
BExCP3B-PT II 2G Ex e d mb IIC T4 Gb • Stainless Steel lift flap
II 2D Ex t IIIC T70°C Db • Metalised Polyester “Duty” label.
Ambient Ta = -40°C to +55°C • Series and/or End of Line resistors.
Housing material Marine grade copper free LM6 Aluminium
Housing finish Phosphated & powder coated finish: anti-corrosion
Cable entries 2 x M20 clearance top and 1 x M20 clearance side.
Back box can be rotated to give 2 x bottom and 1 x side entries
Stopping plugs 2 x nylon plugs as standard Brass and stainless steel plugs
optional
Terminals 6 x 4.0mm² cables

Approvals
ATEX certificate Sira 09ATEX3286X,
IEC 60079-0:2007 Ed 5, EN 60079-1:2004,
EN 60079-7:2007, IEC 60079-18:2009 Ed 3,
EN 61241-1:2004
IECEx certificate IECEx SIR 09.0121X,
IEC 60079-0:2007-10 Edition: 5,
IEC 60079-1:2003 Edition: 5,
IEC 60079-18:2009 Edition: 3,
IEC 60079-7:2006-07 Edition: 4,
IEC 61241-1:2004 Edition: 1
Inmetro certificate 10-IEx-0011X
Complies with design requirements of EN54-11.

01 - ATEX CALLPOINTS 0,5kg IP Other colours available Colours:

on request.

66
