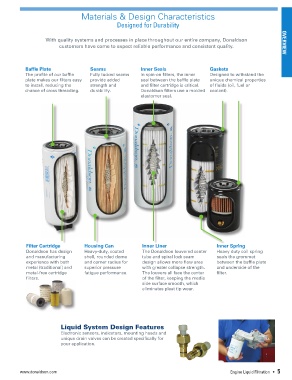

Materials & Design Characteristics
Designed for Durability

With quality systems and processes in place throughout our entire company, Donaldson
customers have come to expect reliable performance and consistent quality. OVERVIEW

Baffle Plate Seams Inner Seals Gaskets
The profile of our baffle Fully tucked seams In spin-on filters, the inner Designed to withstand the
plate makes our filters easy provide added seal between the baffle plate unique chemical properties
to install, reducing the strength and and filter cartridge is critical. of fluids (oil, fuel or
chance of cross threading. durability. Donaldson filters use a molded coolant).
elastomer seal.

Filter Cartridge Housing Can Inner Liner Inner Spring
Donaldson has design Heavy-duty, coated The Donaldson louvered center Heavy duty coil spring
and manufacturing shell, rounded dome tube and spiral lock seam seals the grommet
experience with both and corner radius for design allows more flow area between the baffle plate
metal (traditional) and superior pressure with greater collapse strength. and underside of the
metal-free cartridge fatigue performance. The louvers all face the center filter.
filters. of the filter, keeping the media
side surface smooth, which
eliminates pleat tip wear.

Liquid System Design Features
Electronic sensors, indicators, mounting heads and
unique drain valves can be created specifically for
your application.
