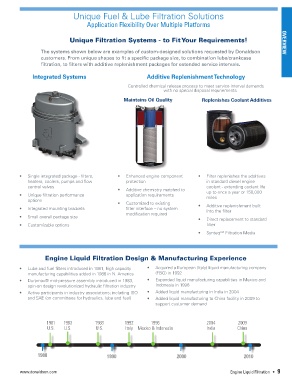

Unique Fuel & Lube Filtration Solutions
Application Flexibility Over Multiple Platforms

Unique Filtration Systems - to Fit Your Requirements! OVERVIEW

The systems shown below are examples of custom-designed solutions requested by Donaldson
customers. From unique shapes to fit a specific package size, to combination lube/crankcase
filtration, to filters with additive replenishment packages for extended service intervals.

Integrated Systems Additive Replenishment Technology

Controlled chemical release process to meet service interval demands
with no special disposal requriements
Maintains Oil Quality Replenishes Coolant Additives

• Single integrated package - filters, • Enhanced engine component • Filter replenishes the additives
heaters, coolers, pumps and flow protection in standard diesel engine
control valves coolant - extending coolant life
• Additive chemistry matched to up to once a year or 150,000
• Unique filtration performance application requirements miles
options
• Customized to existing • Additive replenishment built
• Integrated mounting brackets filter interface – no system into the filter
modification required
• Small overall package size
• Direct replacement to standard
• Customizable options filter
• Synteq™ Filtration Media

Engine Liquid Filtration Design & Manufacturing Experience
• Lube and fuel filters introduced in 1981, high capacity • Acquired a European (Italy) liquid manufacturing company
manufacturing capabilities added in 1988 in N. America (FBO) in 1992
• Duramax® mid-pressure assembly introduced in 1983, • Expanded liquid manufacturing capabilities in Mexico and
spin-on design revolutionized hydraulic filtration industry Indonesia in 1996
• Active participants in industry associations; including ISO • Added liquid manufacturing in India in 2004
and SAE (on committees for hydraulics, lube and fuel) • Added liquid manufacturing to China facility in 2009 to
support customer demand

1981 1983 1988 1992 1996 2004 2009
U.S. U.S. U.S. Italy Mexico & Indonesia India China

1980 1990 2000 2010

www.donaldson.com Engine Liquid Filtration • 9
