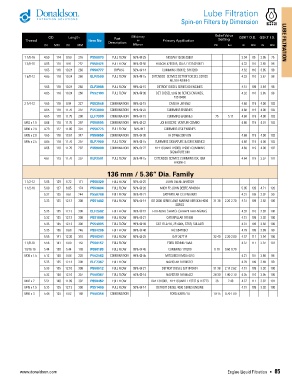

Lube Filtration
Spin-on Filters by Dimension

OD Length Part Efficiency Relief Valve GSKT O.D. GSKT I.D.
Thread Item No. Description @ Primary Application Setting LUBE FILTRATION
IN MM IN MM Micron PSI Bar IN MM IN MM

1 1/8-16 4.50 114 8.50 216 P550073 FULL FLOW 50% @ 25 NISSAN 15208-Z9001 3.34 85 2.95 75
1 3/8-16 4.66 118 9.91 252 P550421 FULL FLOW 99% @ 50 HITACHI 4266385, ISUZU 11324010521 4.33 110 3.85 98
4.65 118 10.24 260 P550777 BYPASS 50% @ 14 CUMMINS 330432, 3313289 4.32 110 3.85 98
1 5/8-12 4.65 118 10.24 260 ELF2500 FULL FLOW 99% @ 15 EXTENDED SERVICE DETROIT DIESEL SERIES 4.33 110 3.87 98
60, 50 ENGINES
4.65 118 10.24 260 ELF3998 FULL FLOW 99% @ 15 DETROIT DIESEL SERIES 60 ENGINES 4.31 109 3.84 98
4.65 118 10.24 260 P552100 FULL FLOW 99% @ 30 DET. DIESEL 50 & 60 SERIES ENGINES, 4.32 110 3.85 98
23518480
2 1/4-12 4.65 118 8.94 227 P553548 COMBINATION 99% @ 15 CASE IH J919562 4.68 119 4.00 102
4.65 118 11.70 297 P553000 COMBINATION 99% @ 22 CUMMINS ENGINES 4.68 119 4.00 102
4.65 118 11.75 298 ELF7300 COMBINATION 99% @ 15 CUMMINS ENGINES 75 5.17 4.68 119 4.00 102
M52 x 1.5 4.66 118 11.70 297 P550595 COMBINATION 99% @ 22 JOHN DEERE VENTURI COMBO 4.68 119 4.01 102
M90 x 2.0 4.79 122 11.85 301 P550775 FULL FLOW 50% @ 7 CUMMINS QSK ENGINES
M95 x 2.0 4.65 118 13.67 347 P550656 COMBINATION 99% @ 30 IH DT466 2004 ON 4.68 119 4.00 102
M95 x 2.5 4.65 118 11.70 297 ELF7900 FULL FLOW 99% @ 15 CUMMINS SIGNATURE & ISM ENGINES 4.68 119 4.00 102
4.66 118 11.70 297 P559000 COMBINATION 99% @ 22 FLEETGUARD LF9000, LF9001 CUMMINS 4.68 119 4.00 102
SIGNATURE 600
4.67 119 11.70 297 ELF2501 FULL FLOW 99% @ 15 EXTENDED SERVICE CUMMINS ISX, ISM 4.64 118 3.97 101
ENGINES

136 mm / 5.36” Dia. Family
1 1/2-12 5.06 129 6.72 171 P558329 FULL FLOW 50% @ 25 JOHN DEERE AR98329
1 1/2-16 5.00 127 6.85 174 P553634 FULL FLOW 50% @ 20 MICH FP, JOHN DEERE AR43634 5.05 128 4.71 120
5.32 135 9.61 244 P550788 FULL FLOW 99% @ 21 CATERPILLAR C13 ENGINES 4.31 109 3.92 99
5.33 135 12.13 308 P551402 FULL FLOW 50% @ 14 DD 2000 SERIES AND MARINE VERSION 4000 31-38 2.20-2.70 4.31 109 3.92 100
SERIES
5.33 135 12.13 308 ELF2502 FULL FLOW 99% @ 15 EXTENDED SERVICE CATERPILLAR ENGINES 4.33 110 3.93 100
5.32 135 12.13 308 P551808 FULL FLOW 99% @ 21 CATERPILLAR 1R1808 4.31 109 3.92 100
5.33 135 12.13 308 P554005 FULL FLOW 99% @ 39 CAT 1R-0716, 2P-4005, STGR, SULLAIR 4.31 109 3.92 100
5.35 136 9.68 246 P554206 FULL FLOW 99% @ 40 IHC 684206C1 4.29 109 3.89 99
5.55 141 12.20 310 P550341 FULL FLOW 50% @ 25 DAF 267714 32-40 2.20-2.80 4.37 111 3.94 100
1 1/8-16 5.56 141 6.00 152 P550157 FULL FLOW FORD EDNN6714AA 4.37 111 3.97 101
13/16-16 5.44 138 5.44 138 P550188 FULL FLOW 99% @ 45 CUMMINS 170200 8-10 0.60-0.70
M36 x 1.5 5.12 130 8.66 220 P552562 COMBINATION 99% @ 45 MITSUBISHI ME074013 4.21 107 3.86 98
5.33 135 12.13 308 ELF7367 FULL FLOW NAVISTAR 1819452C1 4.29 109 3.89 99
5.33 135 12.10 308 P550512 FULL FLOW 99% @ 21 DETROIT DIESEL 5241840301 31-38 2.14-2.62 4.31 109 3.92 100
5.32 136 12.10 307 P550367 FULL FLOW 50% @ 14 NAVISTAR 1819452C1 26-30 1.80-2.10 4.35 110 3.95 100
M42 x 2 5.51 140 11.89 302 P550452 FULL FLOW DAF 1310901, FLEETGUARD LF3737 & LF3773 36 2.48 4.37 111 3.97 101
M45 x 1.5 5.33 135 12.13 308 P551400 FULL FLOW 50% @ 14 DETROIT DIESEL 4000 SERIES ENGINE 4.31 109 3.92 100
M60 x 3 5.48 139 6.62 168 P550356 COMBINATION FORD 826F6714 10-15 0.70-1.00

www.donaldson.com Engine Liquid Filtration • 85
