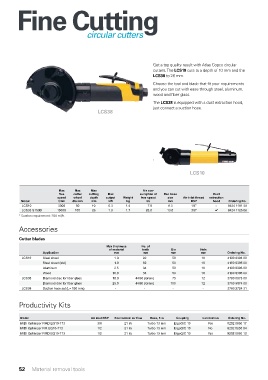

Fine Cutting

circular cutters

Get a top quality result with Atlas Copco circular
cutters. The LCS10 cuts to a depth of 10 mm and the
LCS38 to 26 mm.
Choose the tool and blade that fit your requirements
and you can cut with ease through steel, aluminum,
wood and fiber glass.
The LCS38 is equipped with a dust extraction hood,
just connect a suction hose.
LCS38

LCS10

Max Max Max Air con-
free cutter cutting Max sumption at Rec hose Dust
speed wheel depth output Weight free speed size Air inlet thread extraction
Model r/min dia mm mm kW kg l/s mm BSP hood Ordering No.
LCS10 3000 50 10 0.3 1.4 7.6 6.3 1/4'' - 8424 1161 38
LCS38 S150D 15000 100 26 1.3 1.7 28.0 13.0 3/8'' ●* 8424 1125 06
* Suction requirement: 200 m /h.
3
Accessories

Cutter blades
Max thickness No. of
of material teeth Dia Hole
Application mm mm mm mm Ordering No.
LCS10 Steel sheet 1.0 92 50 10 4190 0394 00
Steel sheet (std) 1.0 62 50 10 4190 0395 00
Aluminum 2.5 34 50 10 4190 0396 00
Wood 10.0 34 50 10 4190 0396 00
LCS38 Diamond disc for fiber glass 18.0 44/60 (Grain) 75 12 3780 5073 00
Diamond disc for fiber glass 25.0 44/60 (Grain) 100 12 3780 5074 00
LCS38 Suction hose set (L= 150 mm) - - - - 3780 2724 31

Productivity Kits

Model Air inlet BSP Economical air flow Hose, 5 m Coupling Lubrication Ordering No.
MIDI Optimizer F/RD EQ10-T13 3/8 21 l/s Turbo 13 mm ErgoQIC 10 Yes 8202 0850 17
MIDI Optimizer F/R EQ10-T13 1/2 21 l/s Turbo 13 mm ErgoQIC 10 No 8202 0850 04
MIDI Optimizer F/RD EQ10-T13 1/2 21 l/s Turbo 13 mm ErgoQIC 10 Yes 8202 0850 13

52 Material removal tools
