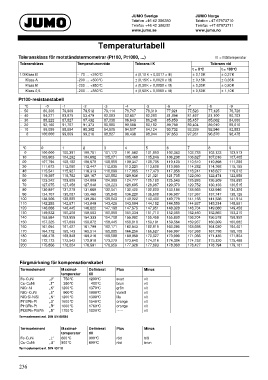

Temperaturtabell

Toleransklass för motståndstermometrar (Pt100, Pt1000, ...) ltl = Mättemperatur
Toleransklass Temperaturområde Tolerans i K Tolerans vid
t = 0°C t = 100°C
1/3 Klass B - 70 … +250°C ± (0,10 K + 0,0017 x Itl) ± 0,10K ± 0,27K
Klass A -200 … +600°C ± (0,15K + 0,0020 x Itl) ± 0,15K ± 0,35K
Klass B -200 … +850°C ± (0,30K + 0,0050 x Itl) ± 0,30K ± 0,80K
Klass 0,5 -200 … +850°C ± (0,50K + 0,0060 x Itl) ± 0,50K ± 1,10K

Pt100-resistanstabell
°C -0 -1 -2 -3 -4 -5 -6 -7 -8 -9
- 50 80,306 79,909 79,512 79,114 78,717 78,319 77,921 77,523 77,125 76,726
-40 84,271 83,875 83,479 82,083 82,687 82,290 81,894 81,497 81,100 80,703
- 30 88,222 87,827 87,432 87,038 86,643 86,248 85,853 85,457 85,062 84,666
-20 92,160 91,767 91,373 90,980 90,586 90,192 89,798 89,404 89,010 88,616
- 10 96,086 95,694 95,302 94,909 94,517 94,124 93,732 93,339 92,946 92,553
0 100,000 99,609 99,218 98,827 98,436 98,044 97,653 97,261 96,870 96,478

°C 0 1 2 3 4 5 6 7 8 9
0 100,000 100,391 100,781 101,172 101,562 101,953 102,343 102,733 103,123 103,513
10 103,903 104,292 104,682 105,071 105,460 105,849 106,238 106,627 107,016 107,405
20 107,794 108,182 108,570 108,959 109,347 109,735 110,123 110,510 110,898 111,286
30 111,673 112,060 112,447 112,835 113,221 113,608 113,995 114,382 114,768 115,155
40 115,541 115,927 116,313 116,699 117,085 117,470 117,856 118,241 118,627 119,012
50 119,397 119,782 120,167 120,552 120,936 121,321 121,705 122,090 122,474 122,858
60 123,242 123,626 124,009 124,393 124,777 125,160 125,543 125,926 126,309 126,692
70 127,075 127,458 127,840 128,223 128,605 128,987 129,370 129,752 130,133 130,515
80 130,897 131,278 131,660 132,041 132,422 132,803 133,184 133,565 133,946 134,326
90 134,707 135,087 135,468 135,848 136,228 136,608 136,987 137,367 137,747 138,126
100 138,506 138,885 139,264 139,643 140,022 140,400 140,779 141,158 141,536 141,914
110 142,293 142,671 143,049 143,426 143,804 144,182 144,559 144,937 145,314 145,691
120 146,068 146,445 146,822 147,198 147,575 147,951 148,328 148,704 149,080 149,456
130 149,832 150,208 150,583 150,959 151,334 151,710 152,085 152,460 152,865 153,210
140 153,584 153,959 154,333 154,708 155,082 155,456 155,830 156,204 156,578 156,952
150 157,325 157,699 158,072 158,445 158,818 159,191 159,564 159,937 160,309 160,682
160 161,054 161,427 161,799 162,171 162,543 162,915 163,286 163,658 164,030 164,401
170 164,772 165,143 165,514 165,885 166,256 166,627 166,997 167,368 167,738 168,108
180 168,478 168,848 169,218 169,588 169,958 170,327 170,696 171,066 171,435 171,804
190 172,173 172,542 172,910 173,279 173,648 174,016 174,384 174,752 175,120 175,488
200 175,856 176,224 176,591 176,959 177,326 177,693 178,060 178,427 178,794 179,161

Färgmärkning för kompensationskabel
Termoelement Maximal- Definierat Plus Minus
temperatur till
Fe-CuNi „J“ 750°C 1200°C svart vit
Cu-CuNi „T“ 350°C 400°C brun vit
NiCr-Ni „K“ 1200°C 1370°C grön vit
NiCr-CuNi „E“ 900°C 1000°C violett vit
NiCrSi-NiSi „N“ 1200°C 1300°C lila vit
Pt10Rh-Pt „S“ 1600°C 1540°C orange vit
Pt13Rh-Pt „R“ 1600°C 1760°C orange vit
Pt30Rh-Pt6Rh „B“ 1700°C 1820°C ----- vit
Termoelement enl. DIN EN 60584

Termoelement Maximal- Definierat Plus Minus
temperatur till
Fe-CuNi „L“ 600°C 900°C röd blå
Cu-CuNi „U“ 900°C 600°C röd brun
Termoelement enl. DIN 43710
